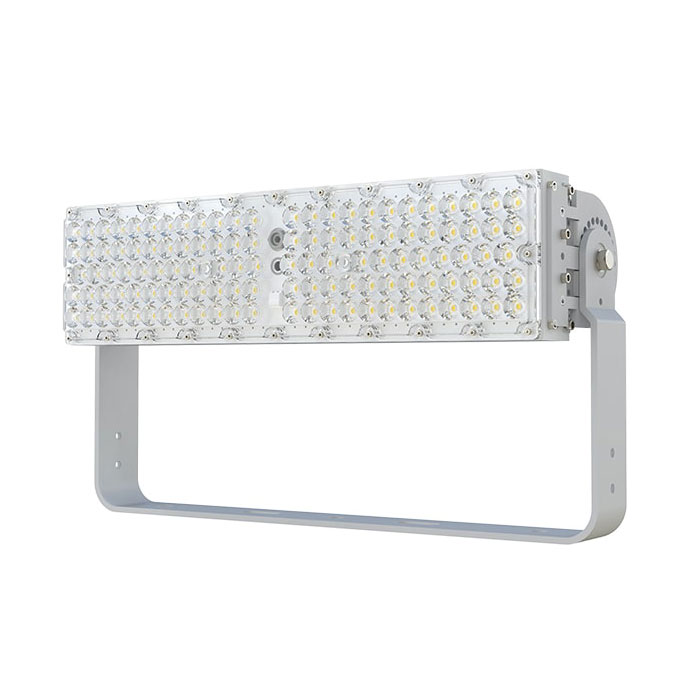

Smart Bright LEDs new 170Lm/W 240W outdoor pole LED high mast lighting fixtures replace traditional lighting fixtures and can immediately improve the quality of lighting in stadiums, large areas, roads, ports, and airports, and reduce energy consumption by as much as 75%. And passed the TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved.

Feature
1. High luminaire efficiency up to 170lm/w；
2. Marine grade aluminum housing；
3. IP66 and IK08 protection rate；
4. 5 years warranty；
5. Folding aluminum fin design which are very light weight；
6. TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved；

Warranties & Certifications

Specifications
Watt:    240W
Lumen:    40,800Lumen
Efficiency:    170Lm/W±3%
Driver:    Meanwell ELG-240-48A
Input Volt:    100-277VAC
Chip Brand:    Lumieleds 5050
CCT:    4000K, 5000K
Weight:    7.0kg
Size:    565*308*155mm
IP Rating:    IP66 & IK10
Wind rating:    51.0-56.0m/s
CRI:    Ra70 (Ra80, Ra90 optional)
Life Time:    L70/B10 >50,000hours
Dimmable:    Dimmable and Non-dimmable
Warranty:    5 Years / 7 years extended warranty available
Beam Angle:    10 / 20 / 40/ 60 / 90/ 140*100/ 135*60 degree(P50)
Certification:    TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved

View Dimensional Drawings

High Efficiency
Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 190Lm/W. Save more energy consumption.

Heat dissipation
Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.

Laser pointer calibration
Laser Tech, help to do final calibration.
It is more convenient to control the illumination direction of the lamp during installation.

Higher quality lighting
The lampshining Slim plus series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90.

Photometrics
The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.

Application
