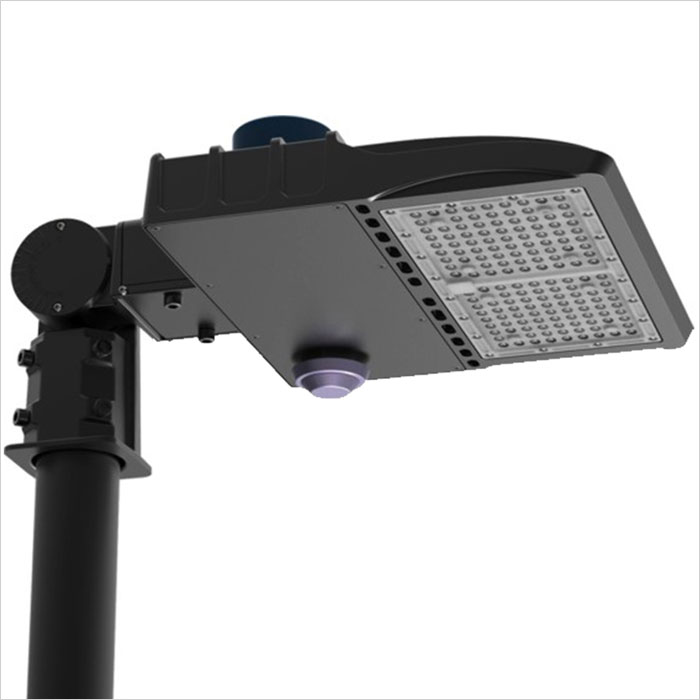

240W LED Parking Lot/Shoebox Area Light w/ Photocell - 33,600 Lumens - 1000W Metal Halide Equivalent - 5700K/5000K/4000K/3500K - Knuckle Slipfitter Mount
This LED flood light emits 33,600 lumens of natural white illumination and has a wide Type III distribution pattern. The 240-watt LED fixture is designed to replace 1000-watt metal-halide (MH) lights with comparable output. It has a weatherproof die cast aluminum housing with an integral heat sink and a polycarbonate lens. Use the included adjustable yoke mount to secure the light on the top or side of buildings or on the ground and direct illumination where it's needed. The LED flood light operates on 100-277 VAC and is designed to last 6 times longer than MH fixtures. Use it for landscape lighting, tree uplighting, flagpole lighting, architectural wall washing, and more.
Applications
Warehouses,Parking Lots,Security Lighting,Commercial Entryways,Commercial Complexes,Parking Garages,Industrial Facilities,Gas Stations,Commercial Lighting
Specifications
CRI: 80 CRI
Certifications/Compliance: DLC Premium, RoHS Compliant, UL Listed
Color Temperature: 3500K/4000K/5000K/5700K
Dimmable: Yes
Dimming: 1-10V
Efficacy: 140 lm/w
Environmental/IP Rating: Weatherproof IP66
Finish: Brown
Input Connection Type: Pigtail
LED Lifetime: 50000 Hours
LED Type: 2835 SMD
Lens Type: Polycarbonate
Light Distribution: Type III-M
Lumen: 33600 Lumen
Maximum Current Draw: 1.0A (1000mA)
Mount Type: Yoke
Operating Temperature: -40~+55°C (-40~+131 °F)
Operating Voltage Range: 120~277 VAC
Output Equivalency: 1000 Watt Metal-Halide
Power Consumption: 240 Watts
Product Materials: Aluminum
TECHNICAL DETAILS
| Model | Watt | Input Voltage | Lumen | CCT | Size | N.W |
|---|---|---|---|---|---|---|
| ALD01-K100W-HEEEE | 100W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 22*13.2*3.4 In | 15.4 kg |
| ALD01-K150W-HEEEE | 150W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 22*13.2*3.4 In | 15.4 kg |
| ALD01-K200W-HEEEE | 200W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 22*13.2*3.4 In | 15.4 kg |
| ALD01-K240W-HEEEE | 240W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 27*13*3.4 In | 21.0 kg |
| ALD01-K300W-HEEEE | 300W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 27*13*3.4 In | 24.0 kg |
| ALD01-K400W-HEEEE | 400W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 36.1*13.3*3.4 In | 30.0 kg |
| ALD01-K500W-HEEEE | 500W | AC100-240V or AC 120-277V or 277-480V | 140lm/W | 3500K/4000K/5000K/5700K | 36.1*13.3*3.4 In | 30.0 kg |
| PS:EEE=DNN(No function) / DSN(Sensing function) / DDM(Dimming function) / DDS(Dimming+Sensing function) |
|---|
**All specifications are subject to change without notice.
