Strip Connectors and Wire

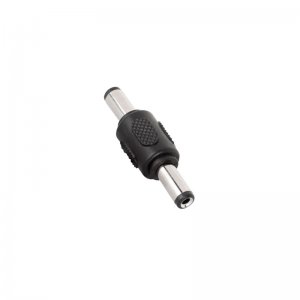

Standard 5.5mm male to male direct connector for CPS series Compact Power supplies or BPS Battery Power supply. Can be used to extend lengths of power wires.

Use these 22-10 AWG red wire nuts for closed-end connections and secure splices. The twist-on wire connectors tighten without ratcheting and feature a deep skirt to prevent bare wire from being exposed. These wire nuts can be removed and reused.

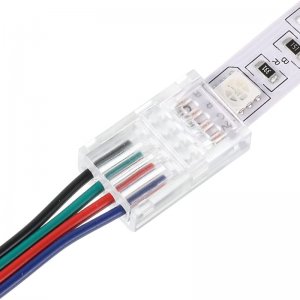

Connect a 10mm RGB LED strip light to power. The adaptor has 4” power wires and the clear connector securely holds wires and strips in place. Specifications Conductors:    4 Material:    Polycarbonate, Tinned Copper Max Output Current:    3 A Strip Width:    10mm (0.39in) Type:    SMD strip to pigtail connector Wire Gauge:    22 AWG Wire Length:    4in (102 mm) Package Weight: 1oz...

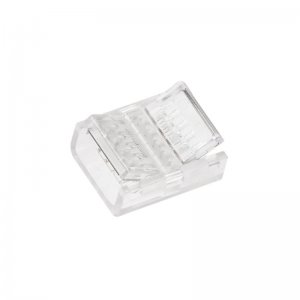

Connect two 12mm RGBW LED strip lights together seamlessly. The clear connector securely holds the strips in place. Specifications Conductors:    5 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    12mm (0.47in) Type:    SMD strip to strip butt connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5" (1cm)

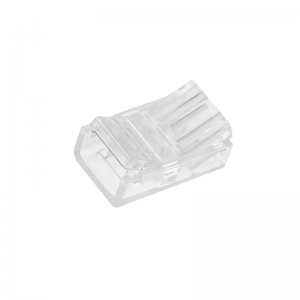

Connect a 10mm single color LED strip light to a 22 gauge pigtail power wire. The clear connector securely holds wires and strips in place. Specifications Conductors:    2 Material:    Polycarbonate Max Output Current:    3 A Strip Width:    10mm (0.39in) Type:    SMD strip to wire connector Wire Gauge:    22 AWG  Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x...

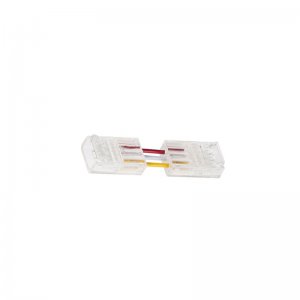

Connect two 10mm tunable white LED strip lights together seamlessly. Use to run strip lights in sharp corners. Specifications Conductors:    3 Material:    Polycarbonate, Tinned Copper Max Output Current:    3 A Strip Width:    10mm (0.39in) Type:    SMD strip to strip corner jumper Wire Gauge:    22 AWG Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5" (1cm)

Connect four 8mm COB LED strip segments together in an ‘X’ shape. White polycarbonate connector secures and hides wires for a clean-looking application. Specifications Conductors:    2 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    8mm (0.31in) Type:    COB strip to strip cross connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5"...

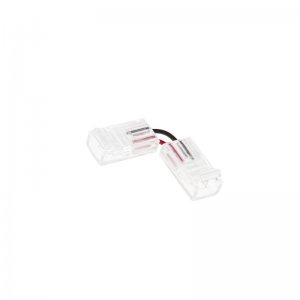

Connect two 8mm single-color LED strip lights together seamlessly. Use to run strip lights in corners. Specifications Conductors:    2 Material:    Polycarbonate, Tinned Copper Max Output Current:    3 A Strip Width:    8mm (0.31in) Type:    SMD strip to strip corner jumper Wire Gauge:    22 AWG Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5" (1cm)

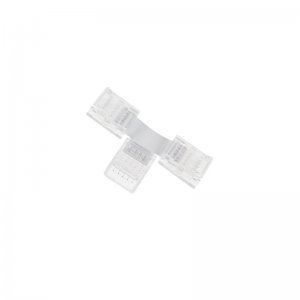

Connect three 12mm RGBW LED strip segments together in a ‘T’ shape. White polycarbonate connector secures and hides wires for a clean-looking application. Specifications Conductors:    5 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    12mm (0.47in) Type:    SMD strip to strip T connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5" (1cm)

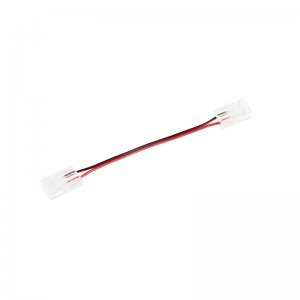

Connect two 10mm single-color LED strip lights together. The connector has 4” power wires and the clear connectors securely hold strips in place. Specifications Conductors:    2 Material:    Polycarbonate, Tinned Copper Max Output Current:    3 A Strip Width:    10mm (0.39in) Type:    SMD strip to strip jumper Wire Gauge:    22 AWG Wire Length:    4in (102 mm) Package Weight: 1oz...

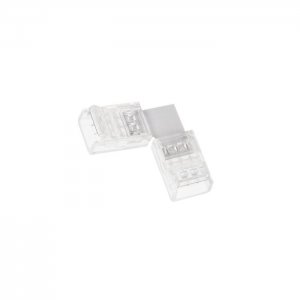

Connect two 10mm tunable white LED strip lights together in an ‘L’ shape. White polycarbonate connector secures and hides wires for a clean-looking application. Specifications Conductors:    3 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    10mm (0.39in) Type:    SMD strip to strip L connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x...

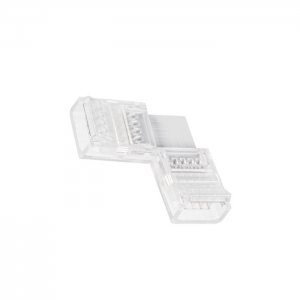

Connect two 12mm RBGW LED strip lights together in an ‘L’ shape. White polycarbonate connector secures and hides wires for a clean-looking application. Specifications Conductors:    5 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    12mm (0.47in) Type:    SMD strip to strip L connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5" (1cm)

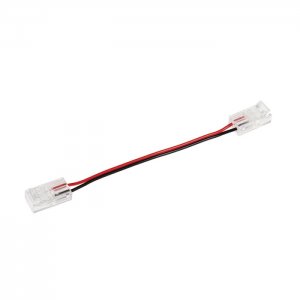

Connect two 8mm single color LED strip lights together. The connector has 4” power wires and the clear connector securely holds wires and strips in place. Specifications Conductors:    2 Material:    Polycarbonate, Tinned Copper Max Output Current:    3 A Strip Width:    8mm (0.31in) Type:    SMD strip to strip jumper Wire Gauge:    22 AWG Wire Length:    4in (102 mm) Package Weight:...

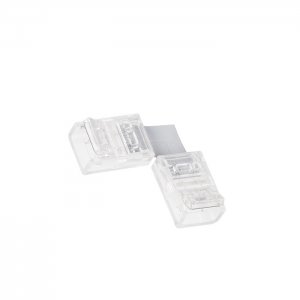

Connect two 10mm single-color LED strip lights together in an ‘L’ shape. White polycarbonate connector secures and hides wires for a clean-looking application. Specifications Conductors:    2 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    10mm (0.39in) Type:    SMD strip to strip L connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5"...

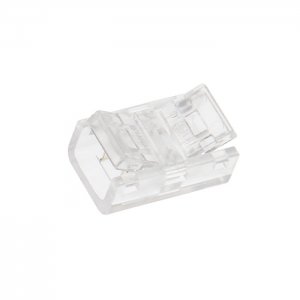

Connect two 8mm single-color LED strip lights together seamlessly. The clear connector securely holds the strips in place. Specifications Conductors:    2 Material:    Polycarbonate Max Output Current:    5.0A Strip Width:    8mm (0.31in) Type:    SMD strip to strip butt connector Package Weight: 1oz (0.03kg) Package Dimensions: 6" (15cm) x 4.25" (11cm) x 0.5" (1cm)
