Sunricher 0-10V One Zone RGBW Wall Panel White (Low voltage)
touch sensitive 0-10V wall panel is from the Sunricher range. It is designed to work with any four channel 0-10v driver.
This 0-10V LED controller is suitable for commercial and domestic use. It can be used in a variety of area such as living rooms, bedrooms or even offices. It is highly reliable and a high quality product perfect for 0-10V control over RGBW Colour Changing LED lighting.
The wall mounted control panel allows you to switch your lighting on and off using the ON/OFF key. You can also adjust the RBG colour using the touch sensitive disc.
It further gives you the option to adjust the light intensity of each channel individually. There is even a button to select the colour temperature from Warm White, Daylight and Cool white. This gives you full control over your lighting and create your unique lighting effect.
It also features a programmable scene. This enables you to save your unique light setting and recall it at the touch of a button.
The touch panel has 4 0-10V outputs which enable you to control 4 dimmable LED drivers simultaneously.
This lighting controller offers ten built-in light effects. Alongside this is a pause function, giving you easy and effortless control over your lighting fixtures.
The wall-mounted controller can be used with a range of LED products such as LED strip lights.
This wall panel enables quick and easy control over your lighting fixtures. It requires a 24C DC power supply to operate. It must be used with a 0-10V dimmer for full control.

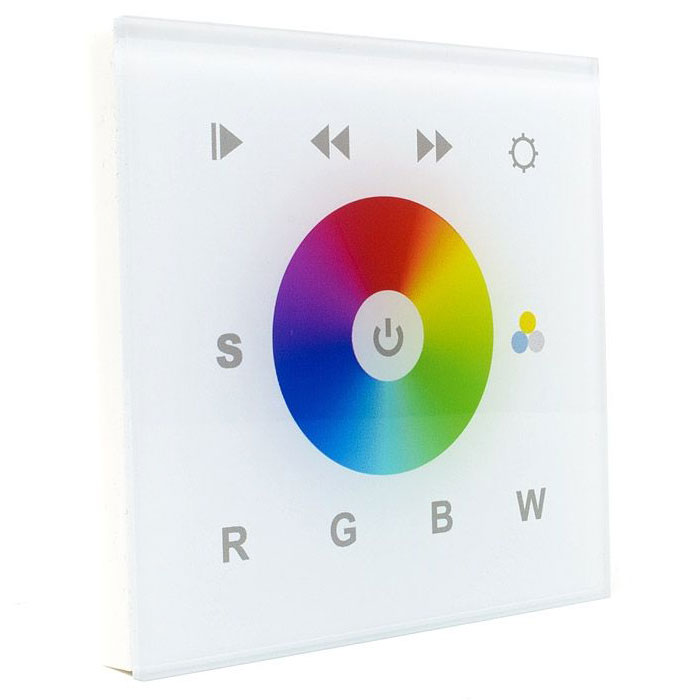

The 0-10V touch wall panel has an attractive white finished glass touch sensitive panel.
Technical Specification
Product Code: SR2811110VWH
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 20mA
Input Voltage: 24v DC
Connectivity: 0-10v protocols
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Low Voltage
Relative Humidity: 8% to 80%
Operating Temp: 0-40°C
