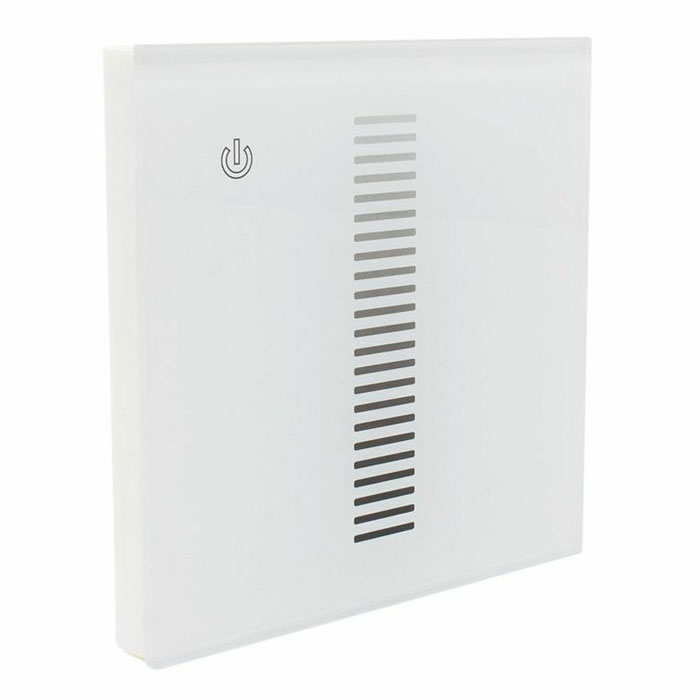

Sunricher 0-10V Single Colour Touch Slider Wall Panel White (Low voltage)
This touch sensitive 0-10V wall panel is from the Sunricher range. It is designed to work with any 0-10v dimmable driver.
This 0-10V LED controller is suitable for commercial and domestic use. It can be used in a variety of area such as living rooms, bedrooms or even offices. It is highly reliable and a high quality product perfect for 0-10V control over single colour LED lighting.
The wall mounted control panel allows effortless control over your LED lighting. It enables you to switch your lighting on or off using the ON/OFF switch. It also allows you to achieve 0-10V dimming using the touch sensitive slider.
The touch panel has 4 0-10V outputs which enables you to control 4 dimmable LED drivers simultaneously.
The wall mounted dimming controller has be used with a range of LED products such as single colour LED strip lights.
This wall panel enables quick and easy control over your lighting fixtures. It requires a 24C DC power supply to operate.
The 0-10V touch wall panel has an attractive white finished touch sensitive panel.
Technical Specification
Product Code: SR2830AS110VWH
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 20mA
Input Voltage: 24v DC
Connectivity: 0-10v protocols
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operating Temp: 0-40°C
