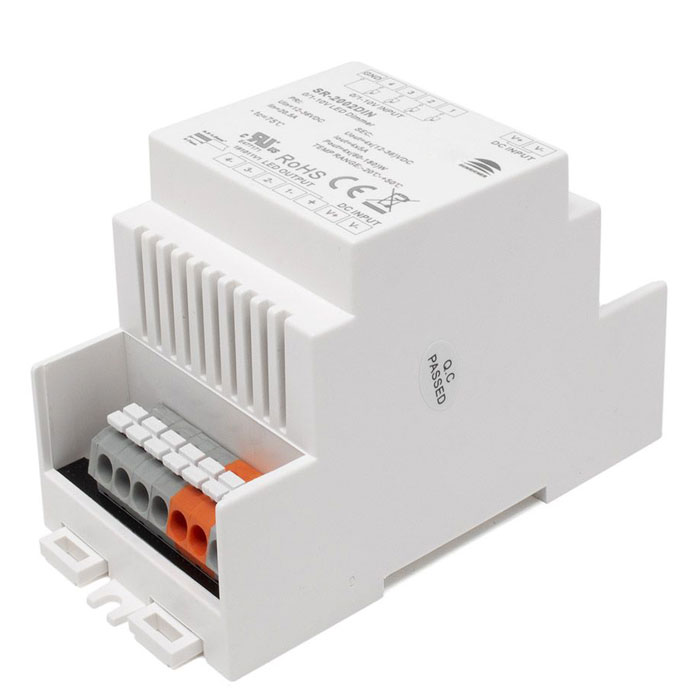

Sunricher 1-10v Four Channel DIN Mountable PWM LED Dimmer
This high quality RF four channel 1-10v dimmer is from the Sunricher range. It is designed to convert a 0-10v signal to PWM (Pulse width modulation) for LED lighting control.
The PWM dimmer is the perfect installation for domestic and commercial markets. It can be used in a range of spaces such as hotels, offices and retail outlets that has an existing 0-10v lighting control system installed.
The Radio frequency dimmer is perfect for dimming and selecting RGB colour for your LED lighting. It is designed for 12v, 24v or 36v up to 5 channel LED lighting products such as dimmable LED Tape / LED strip lights or Neon flex.
The RF dimmer will need to be connected to a suitable constant voltage driver and then to the LED product. Then connect up to 4 1-10v dimmer control unit to the input connections for full smooth dimming or colour mixing.
You can also connect to up to 4 1-10v LED controllers such as wall panels to make controlling professional lights easy. It can also be used with our data repeaters to extend your lighting system.
The LED dimmer requires 12v, 24v or 36v DC power supply to operate with an output of the same.
This is the perfect installation where control over 1-10v lighting system is required. The unit can be mounted upon a DIN rail to allow movement of the dimmer.
Technical Specification
Product Code: SR2002DIN
Product Packed: N/A
Product Type: 0-10v Dimmer
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 96 - 288w
Current: 4 x 5A
Input Voltage:12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: 0-10v protocols
PCB Weight: Not Applicable
Size: 170 x 59 x 29mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Relative Humidity: 8% to 80%
Operating Temp: 0-40°C
