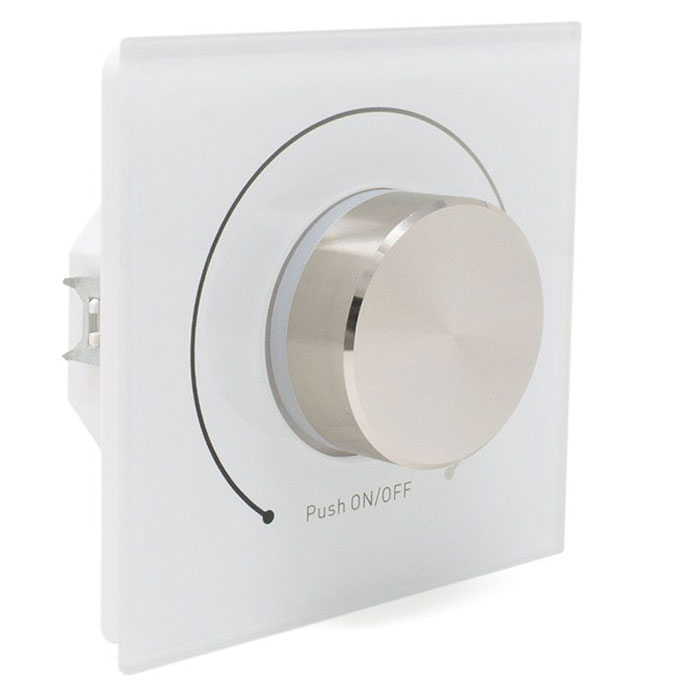

Sunricher AC Phase -Cut Dimmer RF Wall Panel White (Mains Voltage)
This innovative wall panel controller is both AC phase-cut dimmer and RF controllable. It is designed to work with both mains powered LED lighting and incandescent lamps up to a maximum power of 250w and LED lamps or LED Dimmable Drivers up to 150w. It can be configured to work with both leading or trailing products and it has a minimum brightness setting which can be adjusted to suit your individual requirements.
The dimmer is both TRIAC and MOSFET dimmable and it is compatible and easily paired with a variety of Sunricher RF single channel remote control handsets and can be used for both commercial or domestic applications.
Technical Specification
Product Code: SR2400TACRF
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: RF
PCB Weight: Not Applicable
Size: 80 x 80 x 53mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Wireless Range: Up to 20 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
Operation Frequency: 869.5MHz
Operating Temp: 0-40°C
