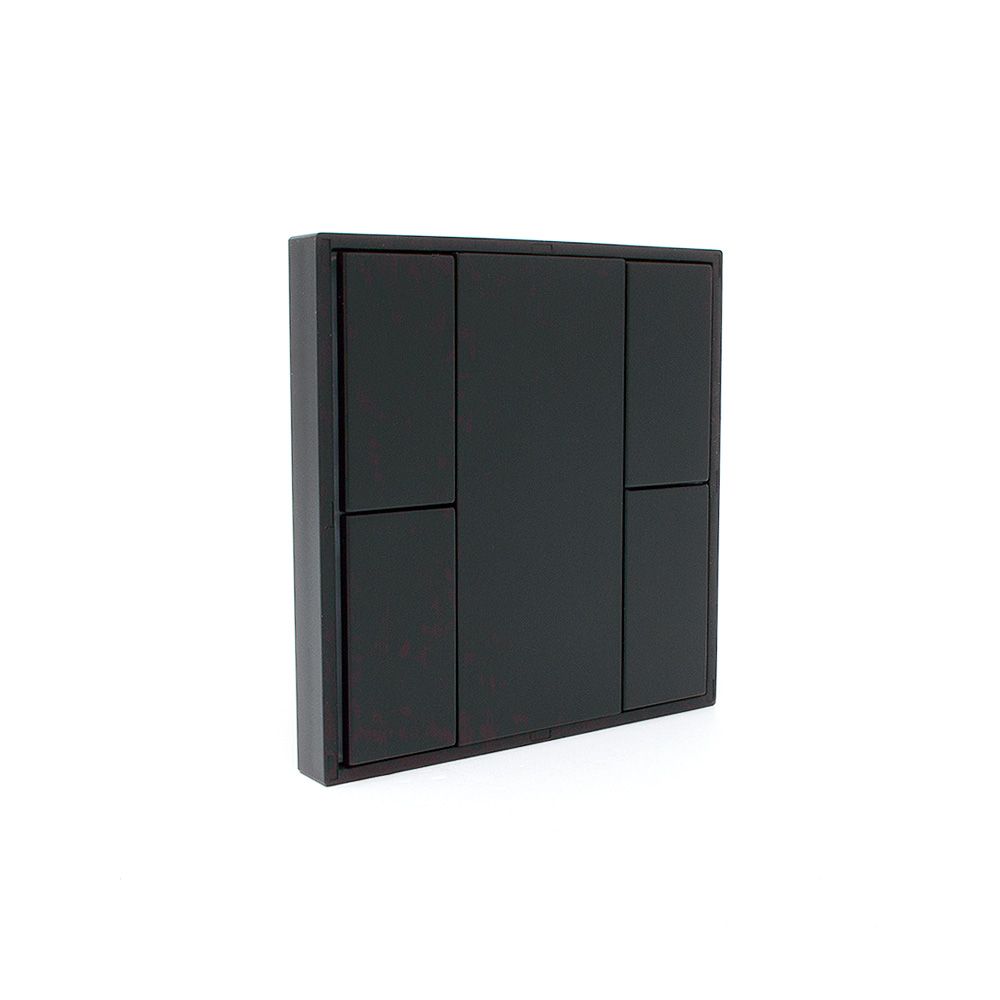

This DALI 2 Controller, with a modern black finish, is available from our range of Sunricher professional control gear. With a simple four-button control feature, this DALI wall panel can be easily integrated into your commercial or domestic installation by simply connecting it to the DALI BUS.

This DALI control panel requires no other power source than what the DALI BUS power supplies. The DALI Master Configurator will coordinate with the wall panel so that various functions can be allocated to each of the four buttons on the DALI device.

Using bi-directional feedback with the DALI Master, this DALI-2 wall panel will inform the user if there are any issues on the control device. Green and Red LEDs mounted behind the buttons indicate visual feedback on the status of the wall panel.

The wall panel is DALI 2 so it will work with any DALI and DALI-2 system, and it is easily configurable via a DALI 2 compliant central controller.

The panel between the switches can be removed and a label panel inserted if required and the wall panel is supplied with a matching black bezel and includes a fixing kit to secure the wall panel to a standard UK Wall panel box.

For further information on this and our other professional DALI lighting control products please contact our technical sales team by phone, email or via live chat on our website.

Technical Specification
Product Code:    SR2422NK4DA2BLACK
Product Packed:    Gift box
Product Type:    Controller
Colour:    Black
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Connectivity:    DALI protocols
Size:    80mm x 80mm x 26.6mm (box depth required is 17.6mm),
Dimmable:    Yes
Input Voltage Range:    12VDC - 22.5VDC (According to IEC62368-101)
Typ. Current Consumption DALI (at 16.5V):    2mA
Max. Current Consumption DALI (Inrush Current at 22.5V):    10mA
Number of Addresses for DALI Control Devices:    4 Programmable Push Buttons
Operating Temp:    -20~50°C
