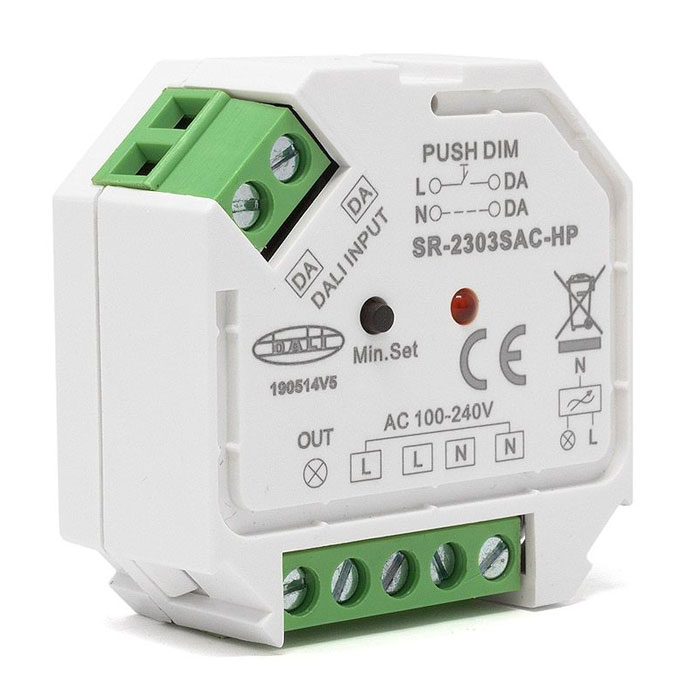

    Sunricher DALI AC Phase Cut & Push Dimmer

      (3 Reviews) | Write a review
    SKU: SBL-SR2303SACHP
    Discontinued
    Starting at: $166.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,23 and Fri,Nov,29. order with 2days,9hrs and 31 min.

    This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.
    This compact AC phase-cut DALI dimmer works with all DALI products. This device will enable you to switch and adjust the brightness of your mains-powered LED or traditional halogen and incandescent lamps from your existing DALI control system.
    The dimer also has a built-in "Push Dim" interface enabling it to be operated using a push switch. The dimmer adopts trailing edge dimming and has an innovative minimum dimming level setting which enables users to set the minimum brightness level thus controlling the brightness of your lamp between this level and maximum brightness.
    The dimmer complies with DALI standards:
    IEC 62386-102
    IEC 62386-207
    The DALI dimmer is ideal for use in both commercial and domestic applications as part of a DALI system.
    Browse our entire range of DALI lighting control devices including DALI LED Drivers, application controllers and more. DALI and DALI-2 are DALI open standards. All our DALI LED controllers are DALI 2 lighting control standards, which is the latest version of the DALI open protocol.

    Technical Specification
    Product Code:    SR2303SACHP
    Product Packed:    Gift box
    Product Type:    Dimmer
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Current:    1A
    Input Voltage:    240v AC
    Output Voltage:    240v AC
    Connectivity:    DALI protocols
    PCB Weight:    Not Applicable
    CRI Rating (greater than):    CRI >80
    Dimmable:    Yes
    LED Type:    Not Applicable
    Average LED life Hrs:    30,000
    Colour Temperature Variation:    IP20 No
    Power Factor >:    Not Applicable
    Continuous Operation:    Not suitable for 24/7 continuous use
    Relative Humidity:    8% to 80%
    Operating Temp:    0-40°C
