Sunricher DALI Bus Power Supply
This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.

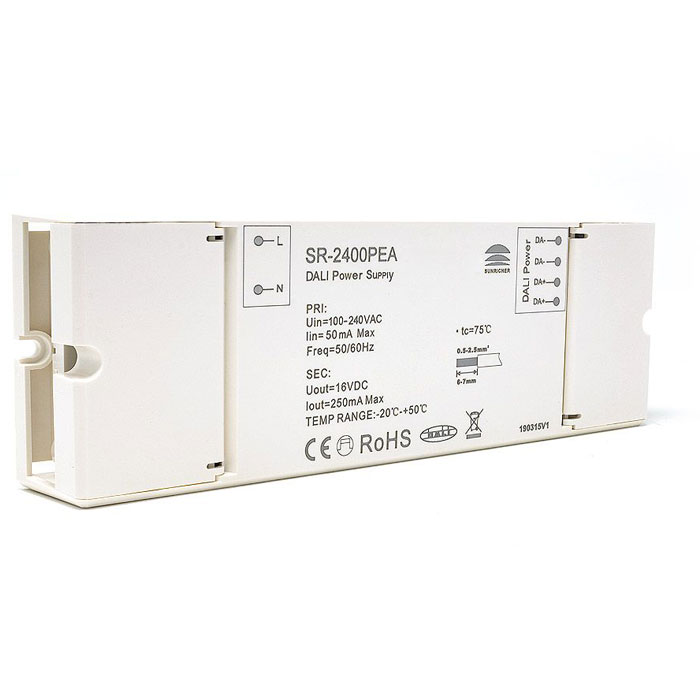

This compact DALI bus power supply is fitted with mounting lugs for surface mounting. This product is IP20 rated which means that the unit is suitable for indoor use only.
The power supply is compatible with all available DALI systems and provides the required 16vDC power for the DALI bus line.
It is fitted with screw terminals on both the input and output sides. There are two LED indicator lights for working status or error status. These lights will give a visual indication should any faults occur in the system.
Smart Bright LEDs supply a wide range of DALI devices such as DALI controllers and LED Strip lights that are suitable to be controlled by our DALI LED drivers and controllers.
Technical Specification
Product Code: SR2400PEA
Product Packed: Gift box
Product Type: Power Supplies
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 300mA
Input Voltage: 100v - 240v AC
Output Voltage: 16v DC
PCB Weight: Not Applicable
Size: 170 x 59 x 29 mm
CRI Rating (greater than): CRI >80
Dimmable: No
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operating Temp: -20 to +45
