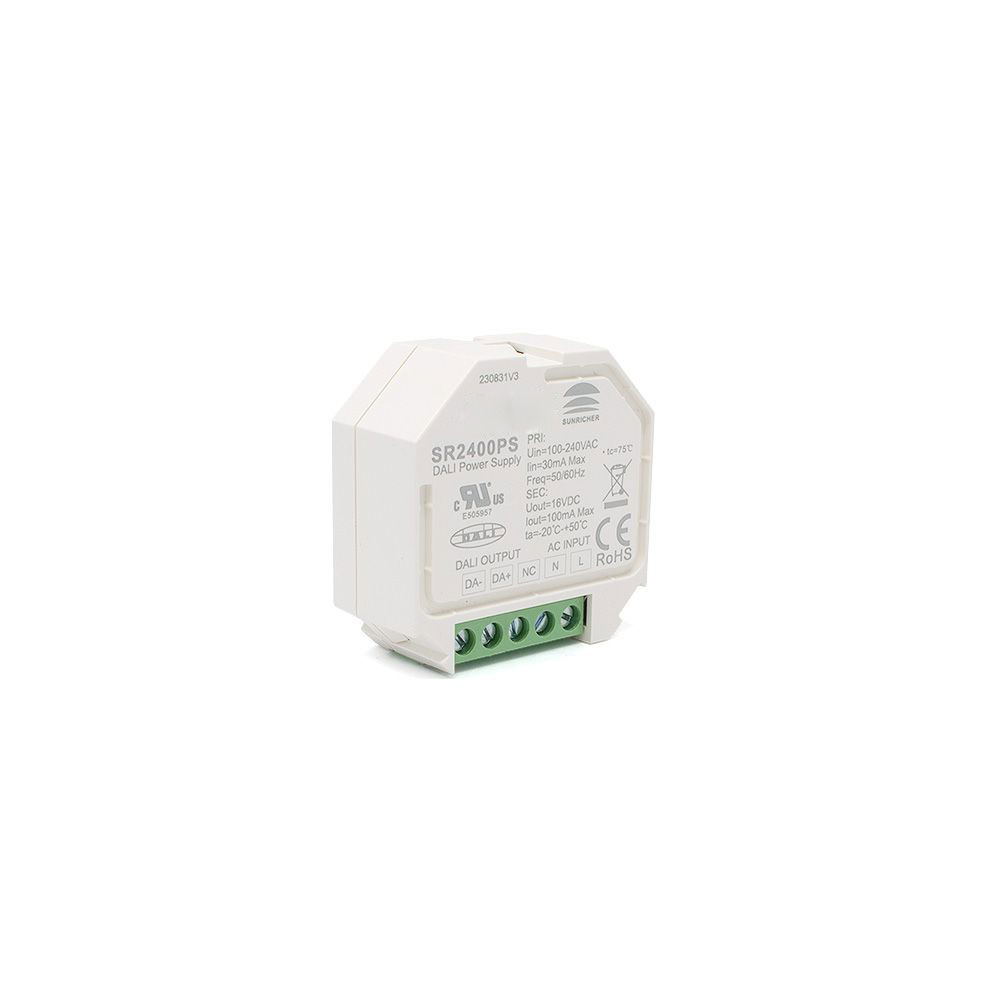

Sunricher DALI Compact DALI BUS Power Supply
Measuring just 45mm x 45mm x 20.3mm, this compact DALI BUS power supply can be fitted into your light switch back box. Simply connect the unit to a 100- 240VAC 50/60Hz Power supply and it will power your DALI BUS products connected to your DALI system, up to 100mA.
This DALI power supply complies with RF interference standard EN55015:2013 and limits for voltage fluctuations and flicker according to EN61000-3-3:2013, making this DALI device suitable for use for both commercial and domestic projects as part of a complete DALI (Digital Addressable Lighting Interface) Installation.
Easily integrate this DALI protocol power supply into your DALI-controlled lighting systems.
For more information on DALI BUS LED Driver and our other professional lighting control devices please contact our technical sales team by phone, email or via our live chat on the LED Technologies website.
Technical Specification
Product Code: SR2400PS
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100V - 240V AC
Output Voltage: 16V DC
Output Current: 100mA
Connectivity: DALI protocols
Size: 45mm x 45mm x 20.3mm
Dimmable: No
DALI bus output: YES
Operating Temp: -20~50°C
