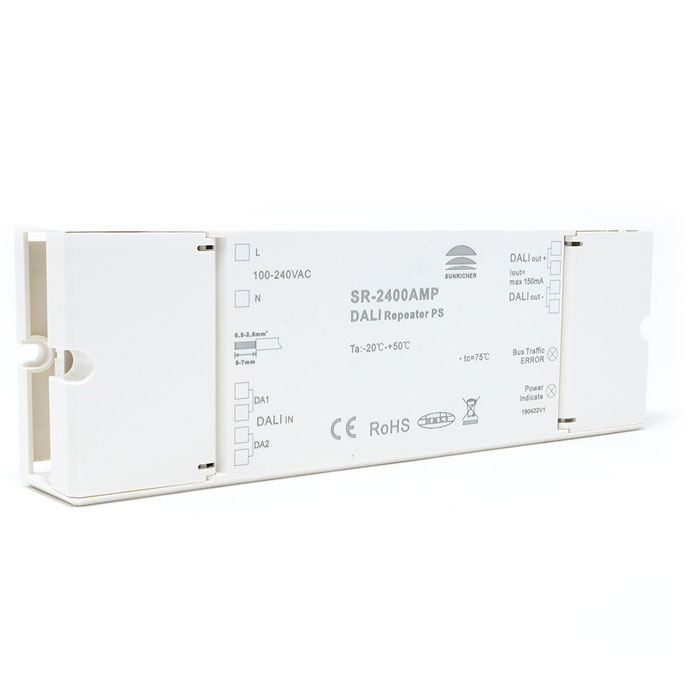

    Sunricher DALI Data Repeater with Built-in DALI Bus Power Supply

      (0 Reviews) | Write a review
    SKU: SBL-SR2400AMP
    Discontinued
    Starting at: $129.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.
    Increase the power capabilities of your existing DALI lighting control system with our range of DALI Data Repeaters. LED Technologies supply a DALI Data Repeater that has a built-in DALI bus power supply.
    The integrated power supply will extend the maximum DALI cable length from 300m up to 600m. This means that the transmission of the bi-directional DALI signals is also increased.
    The maximum amount of DALI devices in the total network is limited to 64. The DALI controllers can be divided into subordinate circuits as required. No extra power supply is required for each additional subordinate DALI circuit.
    Data Repeaters are used widely in larger commercial installations to ensure all lighting control is through a single system. Our DALI unit is powered by mains voltage from 100v to 240v AC. There are LED indicators for power and DALI Bus errors on the device that might show up in the DALI system.
    Browse our entire range of DALI lighting control devices including DALI LED Drivers, application controllers and more. DALI and DALI-2 are DALI open standards. All our DALI LED controllers are DALI 2 lighting control standards, which is the latest version of the DALI open protocol.

    Technical Specification
    Product Code:    SR2400AMP
    Product Packed:    Gift box
    Product Type:    DALI Signal Repeater
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Current:    Up to 150mA
    Input Voltage:    100v - 240v AC
    Connectivity:    DALI protocols
    PCB Weight:    Not Applicable
    Size:    170 x 59 x 29 mm
    CRI Rating (greater than):    CRI >80
    Dimmable:    Yes
    LED Type:    Not Applicable
    Average LED life Hrs:    30,000
    Colour Temperature Variation:    IP20 No
    Power Factor >:    Not Applicable
    Continuous Operation:    Not suitable for 24/7 continuous use
    Voltage Type:    Mains Voltage
    Relative Humidity:    8% to 80%
    Operating Temp:    -20 to +45
