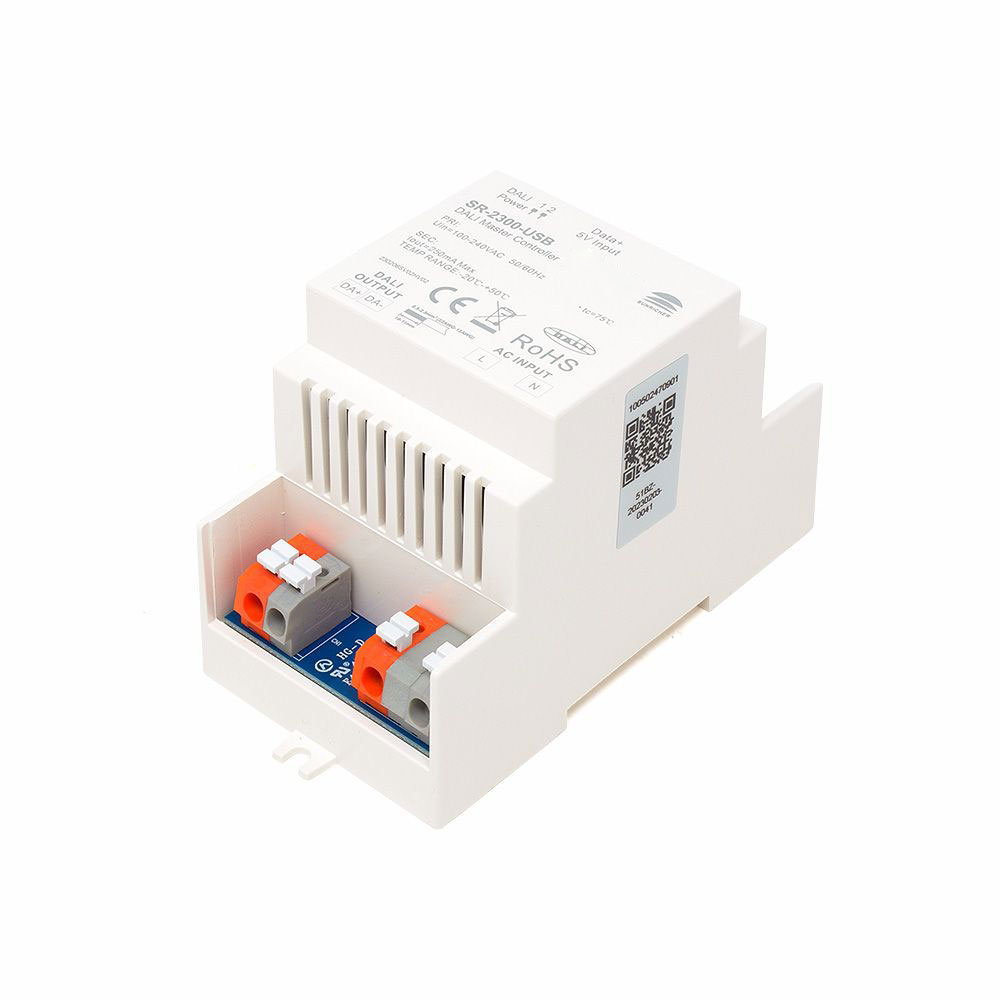

    Sunricher DALI DIN Rail DALI Master Controller

      (7 Reviews) | Write a review
    SKU: SR2300USB
    Discontinued
    Starting at: $469.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    The SR2300USB DALI Master controller from Sunricher supports all DALI protocols including DALI DT6, DALI DT8 TC, DALI DT8 XY and DLI DT8 RGBWA. The product is designed to fit on a standard DIN Rail mounting rail.

    The DALI Master should be connected to the operating computer where the DALI Master software should be installed. The unit is quick and easy to configure from the software and it supports human centric lighting, cycle schedule configuration and it has a built in battery, built in RT and supports timer task configuration. There is also a built in DALI BUS Power supply that can be switched on or off as required, please refer to the software operating instructions for details on how to operate this unit.

    This product is ideal for projects in both commercial and domestic installations where DALI protocols are used to control the lighting and other automated products.

    For more information on this product and other DALI control options, please get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

    Technical Specification
    Product Code:    SR2300USB
    Product Packed:    Gift box
    Product Type:    Power Supplies
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Current:    250mA
    Input Voltage:    100V - 240V AC
    Output Voltage:    16V DC
    Connectivity:    DALI protocols
    Size:    110 x 53 x 65mm
    Dimmable:    No
    Voltage Type:    Mains Voltage
    Relative Humidity:    8% to 80%
    SDK:    SR2300USB
    Operating Temp:    -20 to +45
