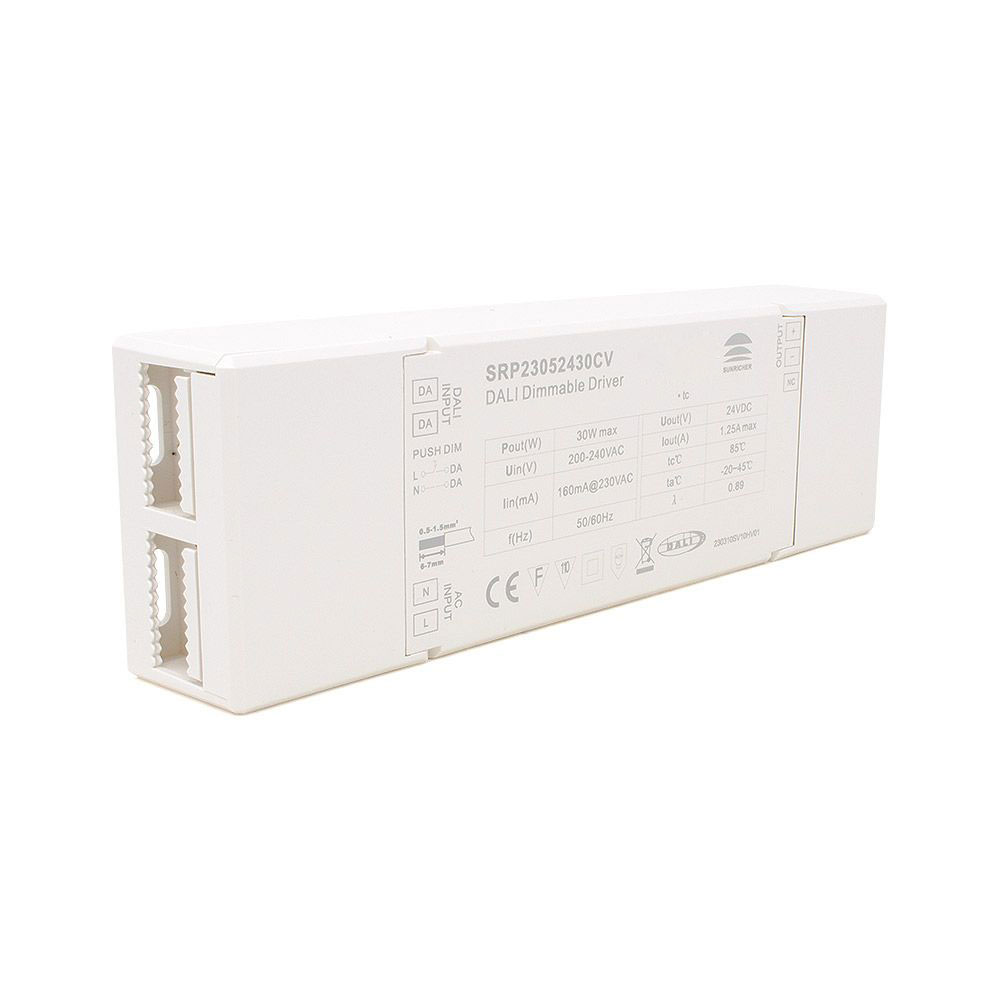

Sunricher DALI DT6 24V 30W Dimmable Driver
This compact, single colour 30w DALI driver is ideal for controlling your single colour 24v LED strips. The driver has a 24v constant voltage output and features PWM dimming and a standard DALI Logarithmic dimming curve.
The driver also has a "Push Dim" function so if connected to a momentary switch will switch on / off and dim your LED product smoothly using the push switch. The driver has a built in PFC function and in addition the overload and over temperature protection will automatically reset when the fault condition has been removed. This professional DALI driver is a feature rich unit and is supplied with a 5 year warranty making it an ideal product for use in both commercial and domestic installations, it is quick and easy to fit and takes up one DALI address for single channel operation, the DALI address is automatically assigned by the DALI Master once connected.
Technical Specification
Product Code: SRP23052430CV
Product Packed: Gift box
Product Type: Power Supplies
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 30W
Current: 1.25A @ 24v
Input Voltage: 100V - 240V AC
Output Voltage: 16V DC
Output Current: 1.25A
Size: 170 x 59 x 29 mm
Dimmable: No
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
DALI Channels: Single
DALI Current Consumption: 2mA
Operating Temp: -20 to +45
