    Sunricher DALI DT6 4 Channel Phase Cut DIN Mountable Dimmer

      (5 Reviews) | Write a review
    SKU: SR2303AC4CHDIN
    Discontinued
    Starting at: $469.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Nov,24 and Sat,Nov,30. order with 2days,9hrs and 31 min.

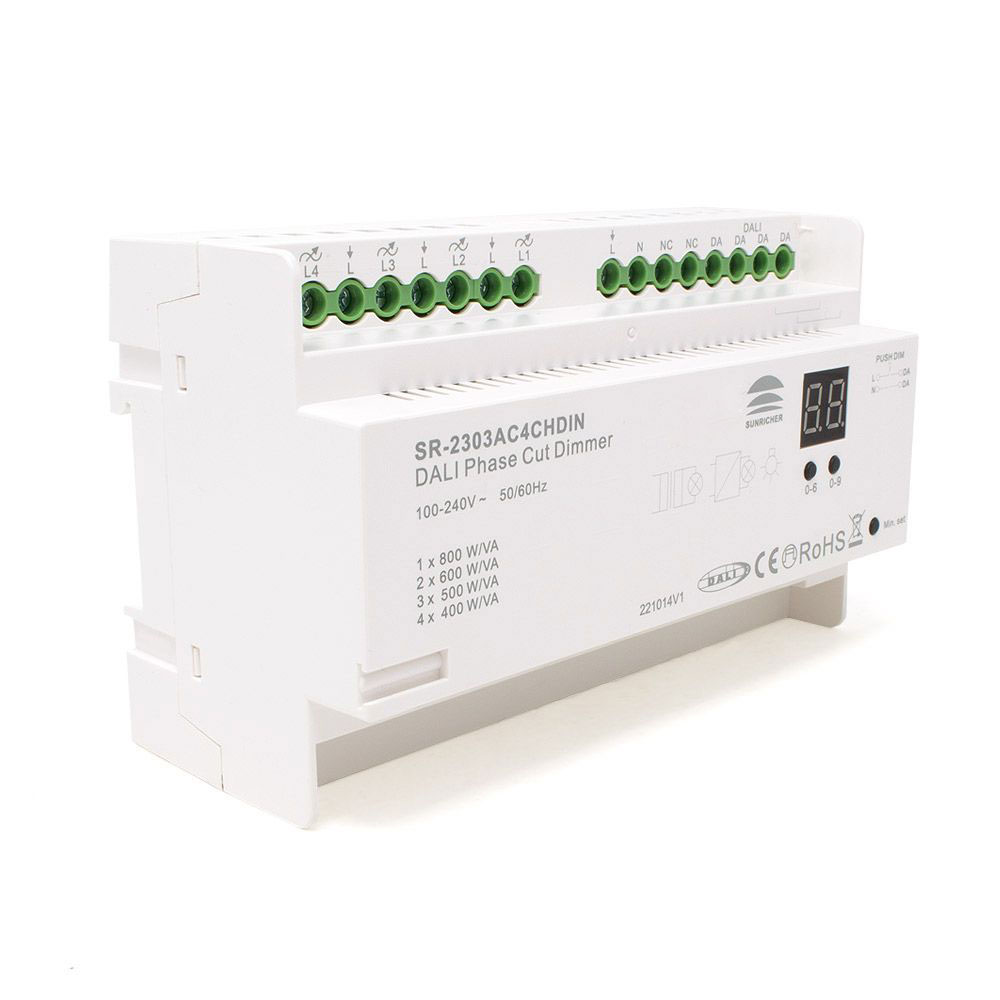

    The SR2303AC4CHDIN from Sunricher is a Four Channel, DALI DT6 Phase Cut Dimmer and for ease of installation, the dimmer is DIN Rail mountable. This feature rich product will control your mains powered, single colour lighting products with both a resistive and a capacitive load enabling it to be used with mains powered LED Lighting, LED Drivers, incandescent lamps and low voltage halogen lamps with electronic transformers. The dimmer can be set as 1, 2, 3, or 4 channels so that it can control all the channels simultaneously or separately.

    The dimmer supports DALI DT6 protocols and is compliant with all DALI 2 products on the market, the DALI address can be set manually using the menu buttons and digital display or automatically from the DALI Master. The unit supports an input voltage of 100v - 240v AC and it also has a "Push Dim" facility. The factory-set dimming level is from 1% up to 100% however, the minimum brightness level can be set as required to accommodate lamps that flicker when dimmed too low. Once the minimum brightness has been set, the unit will not dim any lower that that value on all four channels.

    Note: This unit is a Reverse Phase (trailing edge) dimmer so it is important to check that the products that the dimmer is controlling support Reverse Phase Dimming.

    Technical Specification
    Product Code:    SR2303AC4CHDIN
    Product Packed:    Gift box
    Product Type:    Dimmer
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Current:    4 x 1.8A
    Input Voltage:    100V - 240v AC / DALI bus
    Output Voltage:    100V - 240V AC
    Connectivity:    DALI DT6 Protocols
    Size:    145.4 x 90 x 66.4mm
    Dimmable:    Yes
    Voltage Type:    Mains Voltage
    Adjustable Dimming Curve & Gamma Value:    No
    Adjustable Bit Rate:    No
    Adjustable PWM:    No
    Relative Humidity:    8% to 80%
    DALI Channels:    Four
    RDM:    No
    Rated Voltage:    100v - 240v AC
    Operating Temp:    -20 to +45
