Sunricher DALI DT6 / DT8 RGB Group Control DALI Wall Panel (DALI BUS powered)

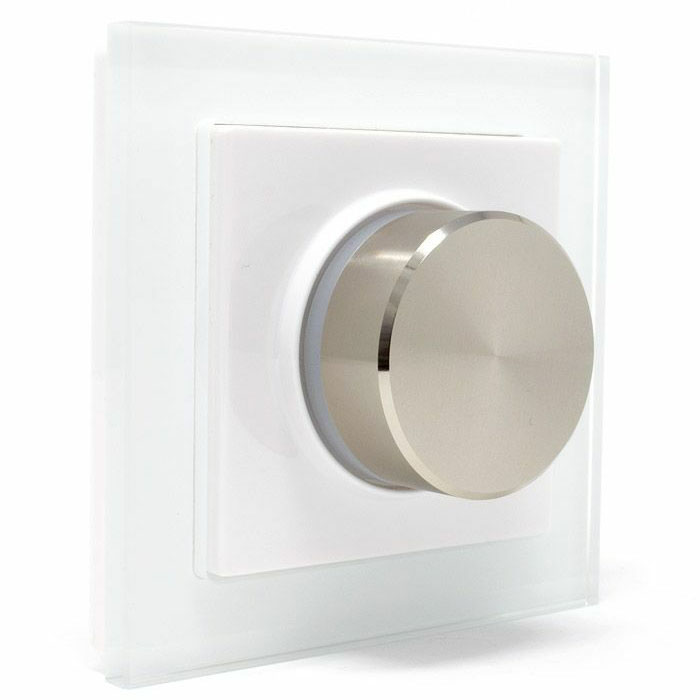

This rotary knob DALI controller is from the Sunricher range. This wall control panel complies with DALI standard protocols IEC 62386-209:2011. It supports all DALI DT8 and DT6 products so it will integrate with your existing DALI system perfectly. It is powered from the DALI BUS and therefore does not require a separate driver.
This DALI LED controller is an ideal installation for commercial and domestic market, where DALI lighting control is required. It can be used in a range of areas such as bedrooms, living rooms and even offices. It is highly reliable and a high quality product.
The wall mounted control panel has easy operation. Simply click the rotary dial to toggle your lighting on or off. Turn clockwise or anti clockwise to adjust the brightness between 0% and 100%. Double click the control knob to achieve colour adjustment and turn to select colour.
This is compatible with a range of LED lighting products such as RGB tri colour LED strip lights.
There is also a rear rotary switch on the LED light control device that enables you to control the selected groups. Choose 0 to control all groups of devices or the corresponding switch position for the other 16 groups.
The DALI LED controller allows easy control of your lighting system to create the perfect light effect for the required space.
The DALI wall panel requires a connection to a DALI BUS power supply.
The wall mounted LED strip controller has an attractive glass back panel, brushed aluminium control knob. It also has a back light feature that replicates the level of lighting on the circuit.
Technical Specification
Product Code: SR2410RGRGBGLDT8
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Current: 4mA
Input Voltage: DALI Bus Powered
Connectivity: DALI DT8 Protocols
PCB Weight: Not Applicable
Size: 80 x 80 x 20.8mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Relative Humidity: 8% to 80%
Operating Temp: 0-40°C
