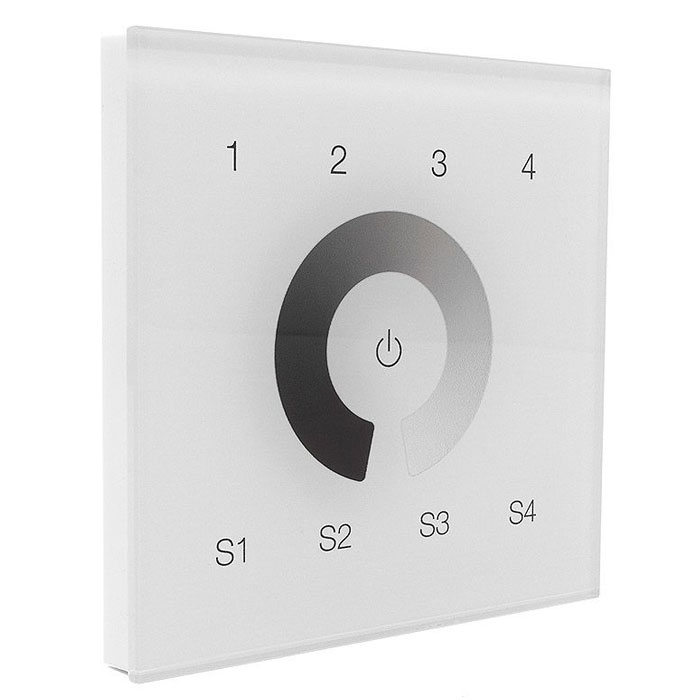

This touch sensitive DALI controller is from the Sunricher range. This wall control panel complies with DALI standard protocols IEC 62386-209:2011. It supports all DALI DT6 products so it will integrate with your existing DALI system perfectly.
This DALI LED controller is an ideal installation for commercial and domestic market, where DALI lighting control is required. It can be used in a range of areas such as bedrooms, living rooms and even offices. It is highly reliable and a high quality product.
The wall mounted control panel has easy operation. Simply click the ON/OFF button in the control surface to toggle your lighting on or off. Adjust the brightness between 0% and 100% using the touch sensitive disc.
This is compatible with a range of LED lighting products such as  LED strip lights.
There are four zones on the LED light controller enabling you to control 4 DALI group of devices together or individually. The control device also features 4 programmable scenes, allowing you to store your unique light setting. The settings can then be easily recalled at the touch of a button.
Each zone controls one DALI address. Two rotary switches on the back of the device enable the DALI address to be adjusted thus changing the address assigned to the zones.
The DALI LED controller allows easy control of your lighting system to create the perfect light effect for the required space.
It can be powered from a 12v or 24v DC constant voltage power supply.
The wall mounted LED strip controller has an attractive white glass touch sensitive surface.

Technical Specification
Product Code:    SR2300TRG4DIMWH
Product Packed:    Gift box
Product Type:    Controller
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage: 12v / 24v DC
Connectivity:    DALI DT6 Protocols
PCB Weight:    Not Applicable
Size:    86 x 86 x 29.1mm
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Constant Voltage
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
