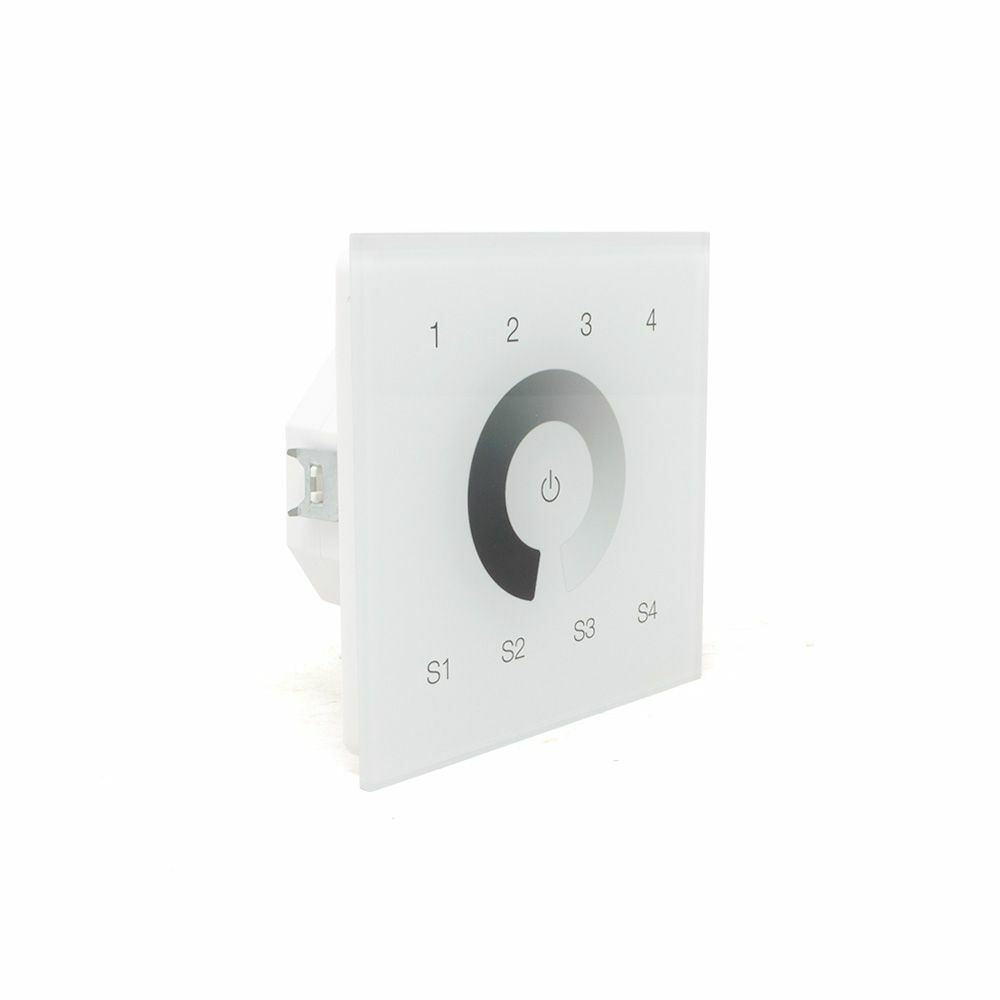

Sunricher DALI DT6 Single Colour Four Scenes Four Addresses DALI Wall Panel White (Mains Voltage)

(4 Reviews) | Write a review

SKU: SR2300TRG4DIMWHAC

This DALI DT6 single-colour, (four DALI Addresses) Wall panel from our professional range of Sunricher control systems features a white glass finish and touch-sensitive controls. It is perfect for controlling single-colour LED lighting products over four zones.

The wall panel complies with DALI standard protocols IEC 62386-209:2011 and it supports DALI DT6 protocols so it will integrate with your existing DALI DT6 system.

Using the touch-controls, the wall panel features:
Easy power (On/Off)
4 x DALI address control
4 x programmable scenes
Smooth dimming
Two rotary switches on the back of the wall dimmer switch enable the DALI address to be set.

The wall panel has a built-in DALI BUS Power supply when connected to a 100V to 240V AC mains supply or it can be connected and powered by an external DALI BUS.

For more information on this and our other professional control products, please contact our technical sales team by phone, email or via live chat on our website.

Technical Specification
Product Code:   SR2300TRG4DIMWHAC
Product Packed：   Gift box
Product Type：   Controller
Colour：   White
IP Rating：   IP20 Non-Waterproof
Guarantee Period：   5 Years
Input Voltage：   100V - 240V AC
Connectivity：   DALI DT6 Protocols
Size：   86 x 86 x 29.1mm
Dimmable:   Yes
Voltage Type：   Mains Voltage
Relative Humidity：   8% to 80%
Operating Temp：   0-40°C
