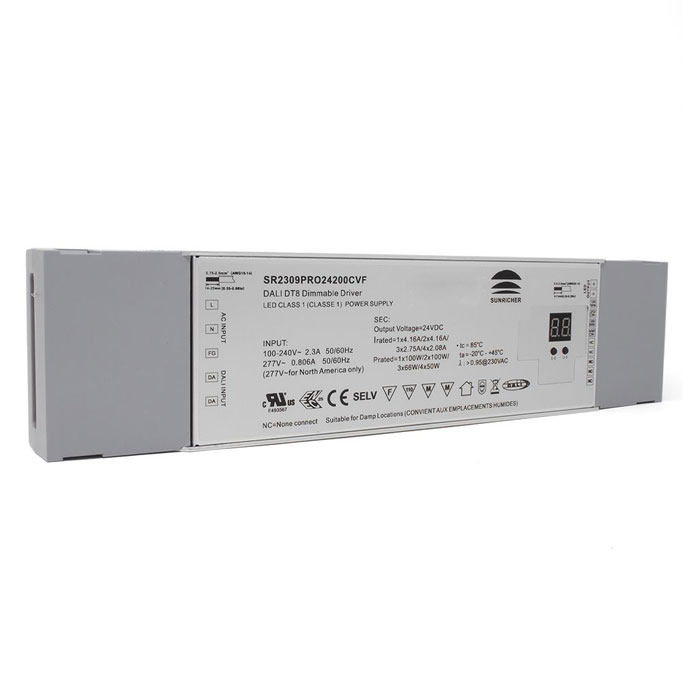

    Sunricher DALI DT8 4 in 1 Professional 24v 200W DALI Driver

      (5 Reviews) | Write a review
    SKU: SBL-SR2309PRO24200CVF
    Discontinued
    Starting at: $215.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Tue,Nov,12 and Mon,Nov,18. order with 2days,9hrs and 31 min.

    This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.
    This professional DALI DT8 driver is a constant voltage 24v 200w DALI driver supporting all DALI DT8 plus DALI XY commands. This high-quality product is the perfect product to integrate into your DALI system
    It is possible to set this DALI controller into four modes enabling it to work with:
    4 x single colour outputs
    2 x CCT outputs
    RGBW outputs controlled via a single DALI address
    It can also be set to connect to DALI XY mode as required
    All the output channels of this device are controlled by a single DALI address and it is compatible with universal DALI master controllers that support DT8 or DALI XY commands.  DT8 commands enable easy RGBW colour adjustment and the DALI address can be manually assigned and displayed using the user interface and digital display if required.  You can also configure the dimmer using the DALI software tool and DALI USB interface.
    The driver has a four-channel 24v DC constant voltage output and a 100v to 240v AC universal input.  The driver features a high Power factor of 0.98 making this a very efficient driver. The driver also provides smooth dimming down to 0.1% without any flickering. The driver runs silently with no buzz when dimming.
    Smart Bright LEDs supply a wide range of DALI devices such as DALI controllers, DALI BUS power supplies and LED Strip lights that are suitable to be controlled by our DALI LED drivers and controllers.

    Technical Specification
    Product Code:    SR2309PRO24200CVF
    Product Packed:    Gift box
    Product Type:    Controller / Receiver
    Colour:    Brushed Aluminium
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    100v - 240v AC
    Output Voltage:    24v DC
    Connectivity:    DALI DT8 Protocols
    Size:    330 x 79 x 39mm
    Dimmable:    No
    Continuous Operation:    Not suitable for 24/7 continuous use
    Relative Humidity:    8% to 80%
    Operating Temp:    -20 to +45
