This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.

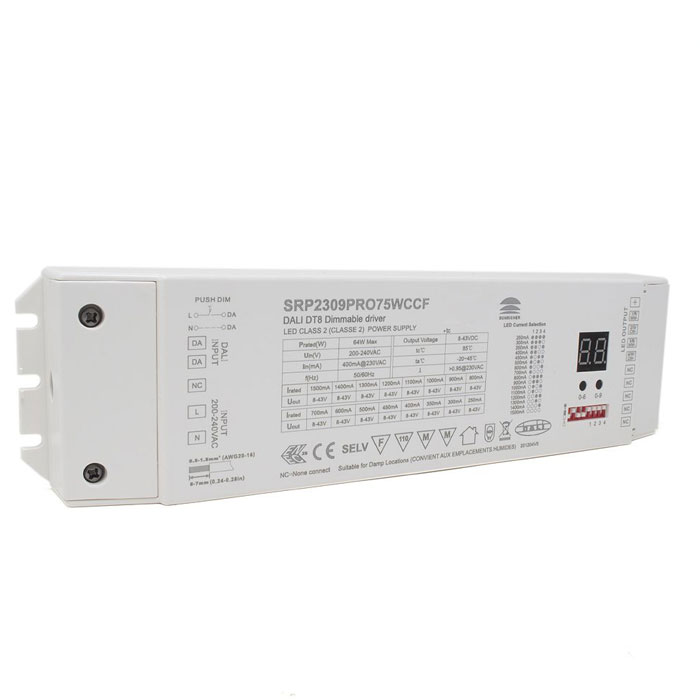

This professional DALI DT8 driver is a constant current 75w DALI driver supporting all DALI DT8 plus DALI XY commands. This high-quality driver is the perfect product to integrate into your DALI system.
It is possible to set this unit into four modes enabling it to work with:
4 x single colour outputs
2 x CCT outputs
RGBW output controlled via a single DALI address
It can also be set to connect to DALI XY protocols if required.
All the output channels of this device are controlled by a single DALI address. The driver is also compatible with universal DALI master controllers that support DT8 or DALI XY commands.
DALI DT8 commands enable easy RGBW colour adjustment. The DALI address can be manually assigned and displayed using the user interface and digital display if required. You can also configure the driver using the DALI software tool and DALI USB interface.
The driver has a four-channel adjustable constant current output from 250mA up to 750mA using DIP switches. The driver also has an input voltage of between 200 to 240v AC universal input.
The driver features a high Power factor greater than 0.9 making this a very efficient driver with smooth dimming down to 0.1% without any flickering, the driver runs silently with no buzz when dimming.
LED Technologies supply a wide range of DALI devices such as DALI controllers, DALI BUS power supplies and LED Strip lights that are suitable to be controlled by our DALI LED drivers and controllers.

Technical Specification
Product Code:    SRP2309PRO75WCCF
Product Packed:    Gift box
Manufacturer:    LED Technologies
Product Type:    Power Supplies
Colour:    Brushed Aluminium
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    200 - 240v AC
Connectivity    :DALI DT8 Protocols
PCB Weight:    Not Applicable
Size:    244 x 64 x 32mm
Dimmable:    No
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Constant Current
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
