Sunricher DALI DT8 CCT Wall Panel Grey (BUS Powered)

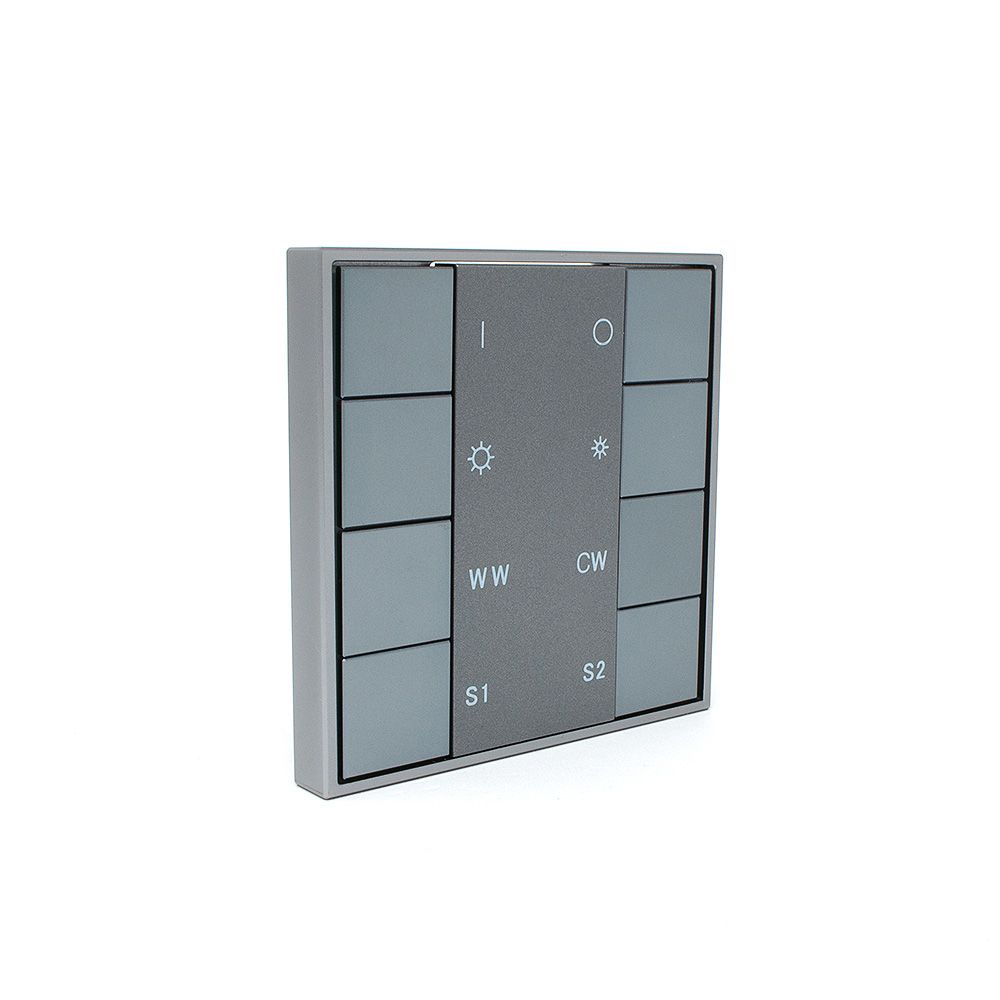

This high-quality DALI DT8 Controller, with a professional grey finish, is available from our range of Sunricher professional control gear.
This DALI control panel can be quickly and easily integrated into your existing or new commercial or domestic lighting projects.
The LED-backlit graphics on the front panel give a clear indication of the various functions of the panel which gives you full control over your colour temperature adjustable LED lighting systems. This Light Control panel will allow you to adjust LED Strips from cool white to warm white while including 2 x programmable scenes that can be recalled at the touch of a button.
Adjust the overall brightness of your connected devices through a single button on your LED Control panel. Switch your lights off and on with ease by using one button on your control panel to reduce their power consumption.
The wall panel works off DALI DT8 protocols. This allows the dual-colour (CCT) LED strips to use just one DALI address instead of two.
The wall panel is supplied with an installation kit which includes a colour-coordinated grey bezel and a mounting kit to secure the wall panel into a standard UK Light switch back box.
For more information on this or any of our professional control products please contact our technical sales team by phone, email or via our live chat on our website.
Technical Specification
Product Code: SR2422NK8CCTG1S2DT8
Product Packed: Gift box
Product Type: Controller
Colour: Grey
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Connectivity: DALI DT8 Protocols
Size: 80mm x 80mm x 26.6mm (box depth required is 17.6mm),
Dimmable: No
DALI Current Consumption: 30mA
Operating Temp: 0-40°C
