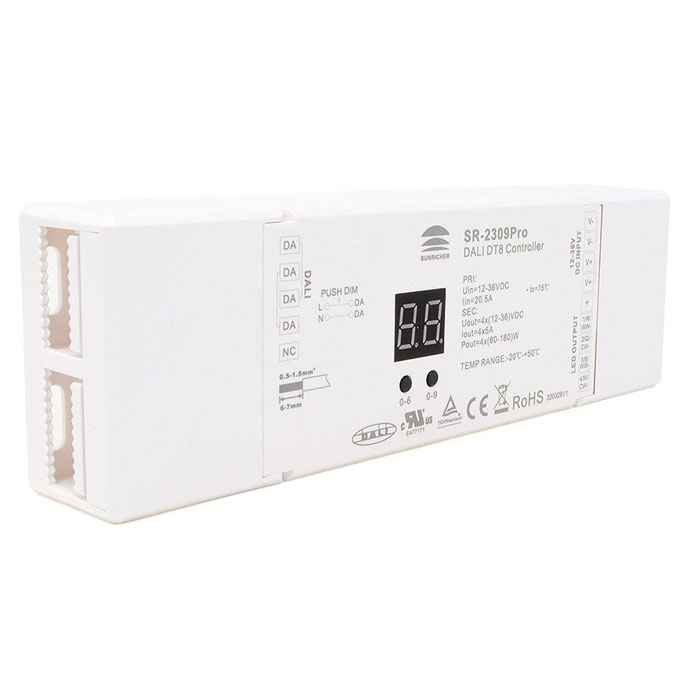

Rather than having to purchase a specific DALI dimmer for single, dual channel, four channel or XY control this DALI DT8 Dimmer can be set as required using the on board display and menu buttons. Simply set the dimmer up as required to suit the installation and this DALI DT8 compatible 4 In 1 dimmer will work with all formats including "XY" coordinates.  Compatible with the latest DALI 2 protocols this professional DALI dimmer also has a "Push Dim" facility so when an AC push switch is connected the display will indicate "PD" indicating that it is in "Push Dim" mode, the momentary switch can switch on and off or dim the outputs.
The digital display and menu buttons are easy to navigate and all the settings can either be adjusted manually or via a compatible DALI DT8 master controller.
AS this is a DALI DT8 units, when set to colour temperature adjustable mode or RGBW mode the unit will only take up one DALI address saving space for more products on the DALI network.
The dimmer is compatible with 12v - 36v DC constant voltage products up to 5A / channel. It is fitted with Push terminals for ease of connection.

Technical Specification
Product Code:    SR2309PRO
Product Packed:    Gift box
Manufacturer:    Sunricher
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Connectivity:    DALI DT8 Protocols
Size:    170 x 53 x 28mm (L x W x H)
Dimmable:    No
Output Max:    5/A
