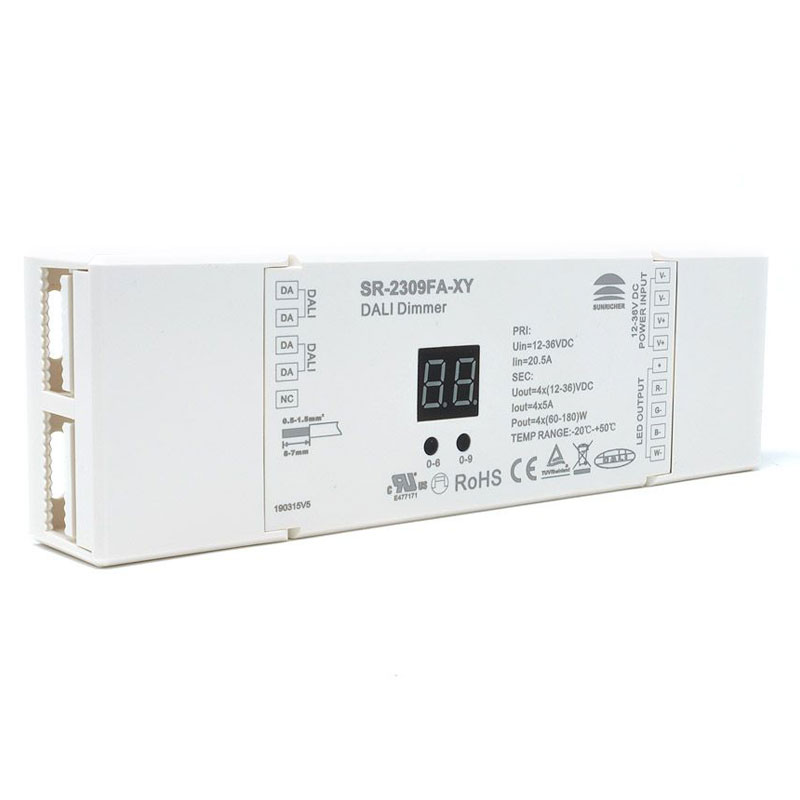

    Sunricher DALI DT8 Dimmer with Colour Type XY Coordinates

      (3 Reviews) | Write a review
    SKU: SBL-SR2309FAXY
    Discontinued
    Starting at: $149.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.
    This 4-channel constant voltage DALI dimmer complies with the latest IEC 62386-209:2011 standard and supports DT8 device commands.
    Colour control is as defined in the DALI specification for device type 8 and the colour type is XY coordinates. All the RGBW output channels of this device are controlled by a single DALI address. It is also compatible with universal DALI master controllers that support DT8 commands.
    DALI DT8 commands enable easy RGBW colour adjustment. The DALI address can be manually assigned and displayed using the high-quality user interface and digital display if required.
    The dimmer is also configurable using the DALI system software tool and the DALI USB interface.
    Browse our entire range of DALI control devices including DALI LED Drivers, application controllers and more. DALI and DALI-2 are DALI open standards. All our DALI LED controllers are DALI 2 lighting control standards, which is the latest version of the DALI open protocol.


    Technical Specification
    Product Code:    SR2309FAXY
    Product Packed:    Gift box
    Manufacturer:    LED Technologies
    Product Type:    Dimmer
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Wattage:    4 x 60w - 180w
    Current:    4 x 5A
    Input Voltage:    12v / 24v / 36v DC
    Output Voltage:    12v / 24v / 36v DC
    Connectivity:    DALI DT8 Protocols
    Size:    170 x 53.4 x 28mm
    Dimmable:    Yes
    Voltage Type:    Constant Voltage
    Relative Humidity:    8% to 80%
    Operating Temp:    -20 to +45
