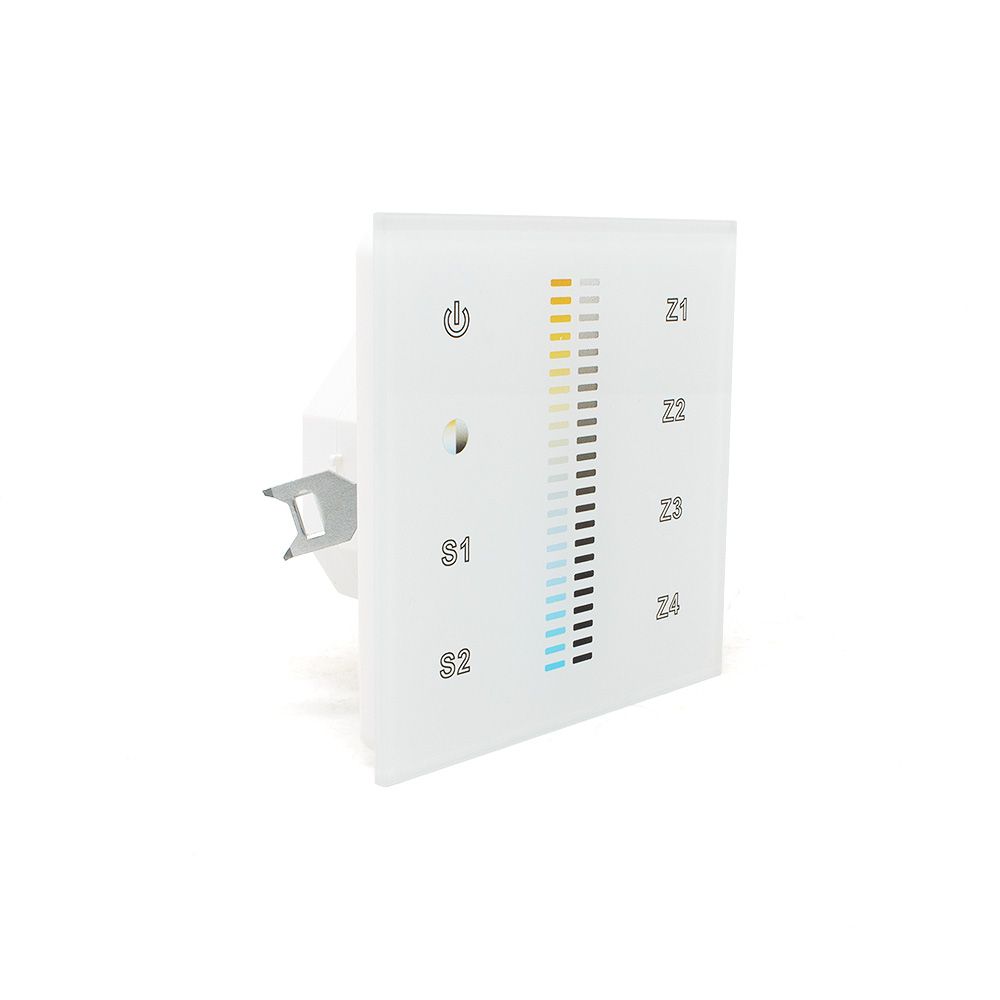

This DALI DT8 Four Zone colour temperature (CCT) wall panel from our range of Sunricher control systems features a white glass front panel and fully touch-sensitive controls for adjustment of your Dual Colour (CCT) LED Lighting products.

DALI LED control systems allow you to address control your lighting and the wall control panel complies with DALI standard protocols IEC 62386-209:2011 supporting DALI DT8 protocols so it will integrate with your existing DALI DT8 system perfectly.

Using the high-quality touch panel, this CCT wall panel features:
Easy power (On/Off)
4 x zone control
2 x programmable scenes
Smooth colour temperature adjustment from cool white to warm white
Smooth dimming control
Each zone controls one DALI address. Two rotary switches on the back of the device enable the DALI address to be adjusted.

The wall panel has a built-in DALI BUS Power supply when connected to a 100V to 240V AC mains supply or it can be connected and powered by an external DALI BUS.

For more information on all our professional control systems please contact our technical sales team by phone, email or live chat via our website.

Technical Specification
Product Code:    SR2300TSCCTWHAC
Product Packed：    Gift box
Product Type：    Controller
Colour：    White
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Input Voltage：    100V - 240V AC
Connectivity：    DALI DT8 Protocols
PCB Weight:    Not Applicable
Size:    86 x 86 x 29.1mm
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    Not Applicable
Voltage Type    Mains: Voltage
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
