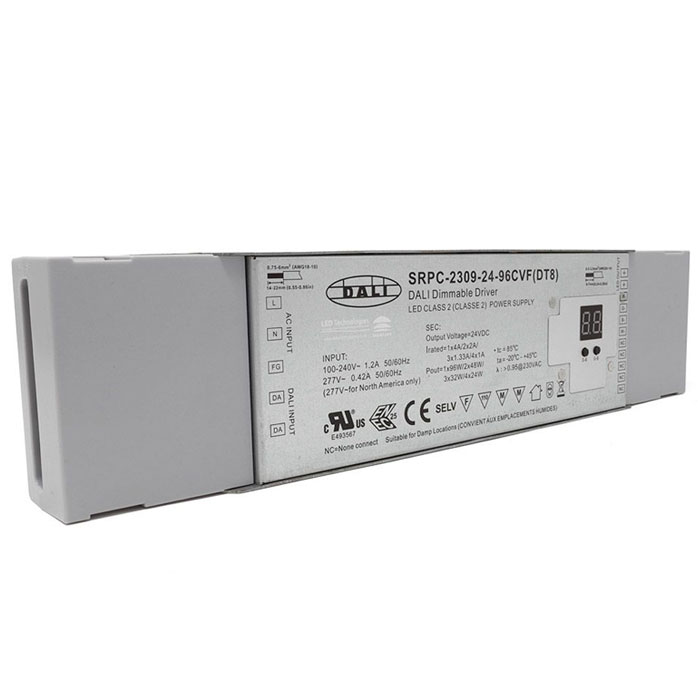

Sunricher DALI DT8 RGBW Four Channel Professional 24v 96W DALI Driver
This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.
This four-channel 24V 96W constant voltage RGBW DALI DT8 Driver is a perfect addition to your DALI control system. The unit is a UL, ENEC and TUV-approved device which supports all DALI DT8 device commands. Colour control is as defined in the DALI specification for device type 8.
All the RGBW output channels of this device are controlled by a single DALI address. The DALI LED driver is compatible with universal DALI master controllers that support DT8 commands
DT8 commands enable easy RGBW colour adjustment and the DALI address can be manually assigned and displayed using the user interface and digital display if required. You can also configure the dimmer using the DALI system software tool and DALI USB interface.
The driver has a four-channel 24v DC constant voltage output and a 100v to 240v AC universal input. The driver features a high Power factor of over 0.9 making the efficiency greater than 90. The driver also has smooth dimming to 0.1% without any flickering, the driver runs silently with no buzz when dimming.
Smart Bright LEDs supply a wide range of DALI devices such as DALI controllers, DALI BUS power supplies and LED Strip lights that are suitable to be controlled by our DALI LED drivers and controllers.
Technical Specification
Product Code: SRPC23092496CVF
Product Packed: Gift box
Product Type: Controller / Driver
Colour: Brushed Aluminium
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 96w
Current: 4 x 1A
Input Voltage: 100v - 240v AC
Output Voltage: 24v DC
Connectivity: DALI DT8 Protocols
PCB Weight: Not Applicable
Size: 330 x 79 x 39mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: 90
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Operating Temp: -20 to +45
