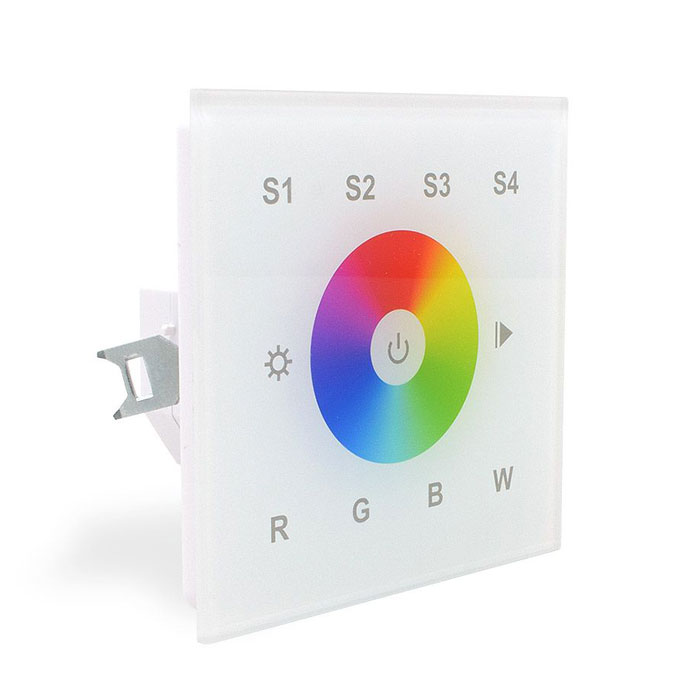

Sunricher DALI DT8 RGBW LED 4 x Scenes Wall Panel White (Mains voltage)
This wall control panel is from our range of Sunricher products. It is a high-quality DALI DT8 wall mounted controller designed for controlling Quad Colour LED products. It is ideal for installation in the domestic or commercial market. It is highly reliable and a high-quality product.
Instant colour selection is available using the touch-sensitive disc on the LED controller. This enables you to achieve the perfect colour mix required, from bright bold colours to light pastel colours.
It can then store it into a programmable scene. The programs can be instantly recalled at the touch of a button. The DALI controller will control up to four scenes individually in a single zone.
The LED light controller also features eight effects that can be selected and adjusted for both run speed and brightness.
This DALI wall control panel complies to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation. Each DALI DT8 device is controlled via a single DALI address.
Using its high-quality touch control LED light control, this LED remote control panel features:
Smooth Dimmable adjustment of LED strip lights
Smooth adjustment of RGBW colour adjustment
4 x Scene control
Pause/Play 8 built-in colour sequences with adjustable speed
Rotary Switch for assigning DALI Scenes (Total of 16 Scenes)
Rotary Switch for assigning DALI Groups (Total of 16 Groups)
This wall-mounted DALI DT8 controller enables dimming commands and DT8 commands to be sent to 1 Group of DALI devices on the DALI circuit. The rotary switches on the back of the wall panel are used to select the Groups you would like to control. This is also where you set the starting Group number. A total of 16 DALI Groups can be selected.
The transmitter has an attractive white finished touch-sensitive glass panel.
Technical Specification
Product Code: SR2300TRRGBW
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC / DALI bus
Connectivity : DALI DT8 Protocols
Size: 86 x 86 x 41mm
Dimmable: Yes
Colour Temperature Variation: IP20 No
Wireless Range: Up to 20 metres
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
Operation Current: < 15 mA
DALI Consumption: 4 mA
DALI bus output: 100 mA Max.
Operating Temp: 0-40°C
