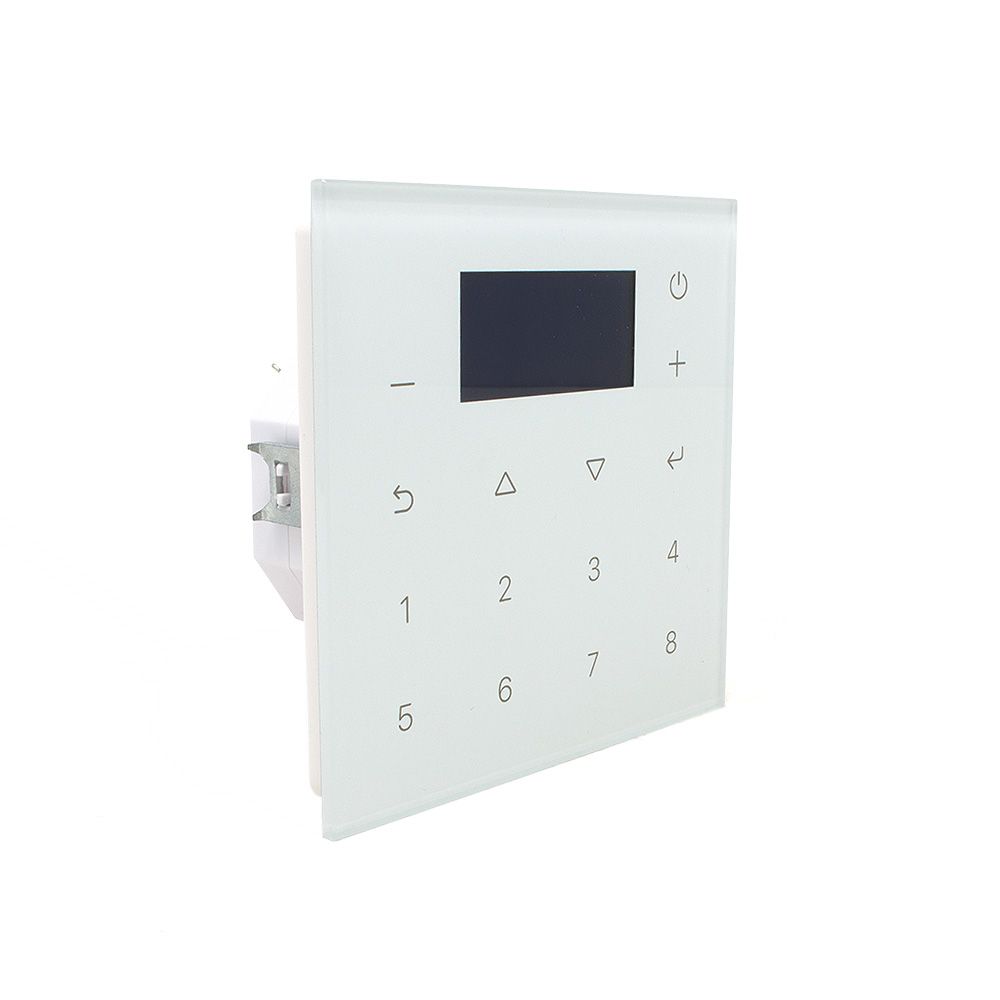

This powerful DALI Master wall panel supports five DALI control protocols including DT6, DT8 TC, DT8 XY, DT8 RGBWA and DT7. With the capabilities of setting 256 timer tasks and enabling control over 64 DALI devices with 16 settable scenes per device, this game-changing DALI wall panel is perfect for both commercial and domestic projects. The clear OLED digital display and user interface is intuitive and easy to operate, and all functions can be either set directly from the wall panel or when from the DALI Master PC program.

The wall panel fits into a standard European 86mm x 86mm wall fitting providing you have at least a 41mm void behind the panel. The wall panel is supplied with a fitting kit and connects to a 100V - 240V AC mains supply and then the panel can be connected to the DALI BUS. Note: A "USB A" to "Micro USB" cable is required to connect the panel to your PC.

When connected to the DALI Master PC program you can also install the latest firmware updates keeping it up to date with the latest features.

For more detailed information on this and our other professional Sunricher products please contact our technical sales team by phone, email or live chat on our website.

Technical Specification
Product Code:    SR2300TOLED
Product Packed:    Gift box
Product Type:    Controller
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100V - 240v AC / DALI bus
Connectivity:    DALI DT8 Protocols
Size:    86mm x 86mm x 41mm
Dimmable:    Yes
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
