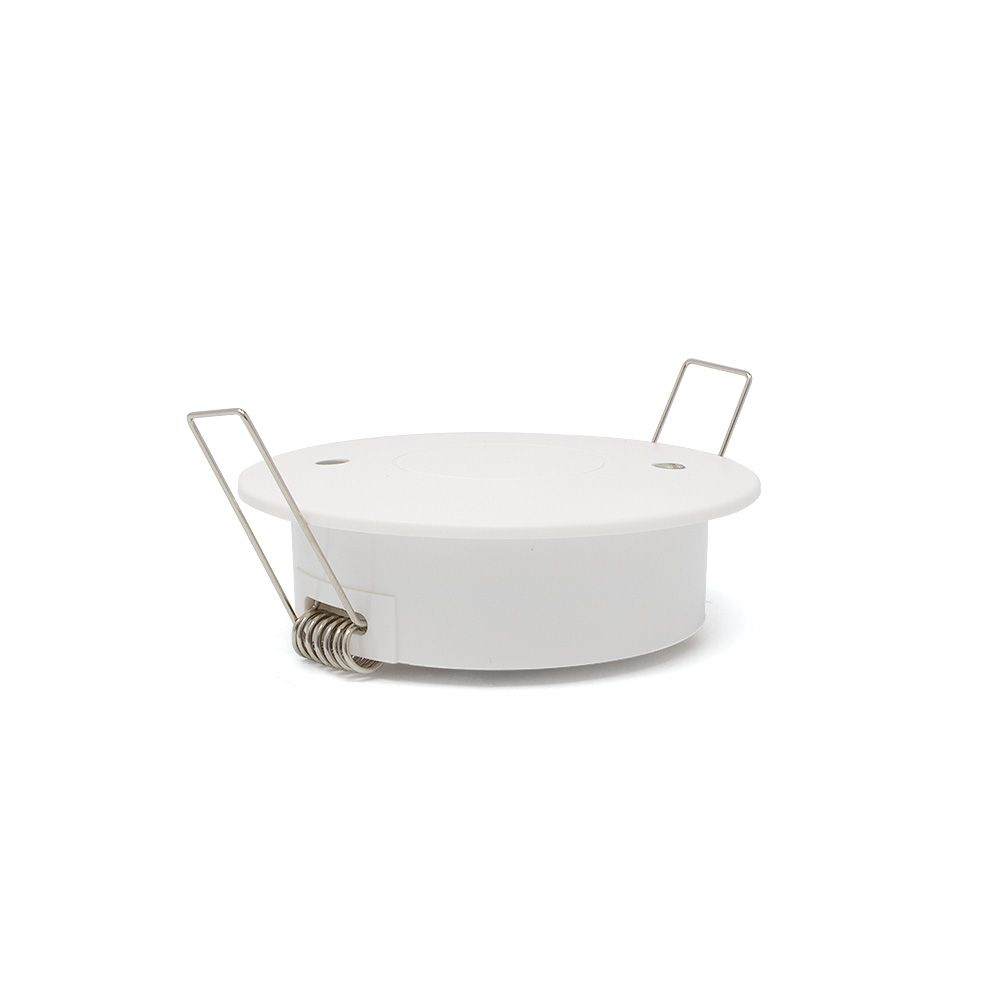

The SRDA9030AMWBUS is a ceiling-mountable DALI-2 Sensor with a Microwave motion sensor & light sensing that can be configured from the DALI master program.
The DALI 2 Sensor connects to the DALI BUS so there is no need for any additional power supply to make the sensor work. Once the sensor has been connected to the DALI lighting control system, the DALI Master can then be used to program the DALI Sensor with all the various settings as required.
The device's sensor detects motion with the PIR sensor and also the illuminance level using the light sensor.
An LED indicator is located at the bottom of the device. This indicator flashes Red when motion is detected and flashes Green when a DALI signal is detected from the application controller.
These DALI sensors offer a range of opportunities and are perfect for commercial installations such as:
Hospitals
Schools
Retail stores
Conference rooms
And many more suitable applications
Save money by automatically turning lights on when needed. The amount of time the unit keeps the lights on is configurable from the DALI-2 compliant central control unit or DALI Master.
The Microwave sensor has a longer range than the PIR sensors available with a recommended mounting height of 4-8m. These sensors can be surface-mounted to a wall (130º Detection Angle) or ceiling-mounted (360º Detection Angle).
For more information on these and all our other professional control products please contact our technical sales team by email phone or via live chat on our website.
Technical Specification
Product Code: SRDA9030AMWBUS
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: DALI Bus Powered
Connectivity: DALI protocols
Size: 83mm diameter 21mm depth.
Dimmable: No
Detection Angle: 150º (Wall), 360º (ceiling)
Motion Detection: Microwave Sensor
Detection Sensitivity: 0-15 (0 = Highest Sensitivity)
Microwave High Frequency: 5.8 GHz ±75 MHz ISM Band
Light Sensor Event: 0-1000 Lux (10bit), resolution: 10lux
Mounting Height: Up to 49ft (15m), recommended height: 13-26ft (4-8m)
Operating Temp: NA
