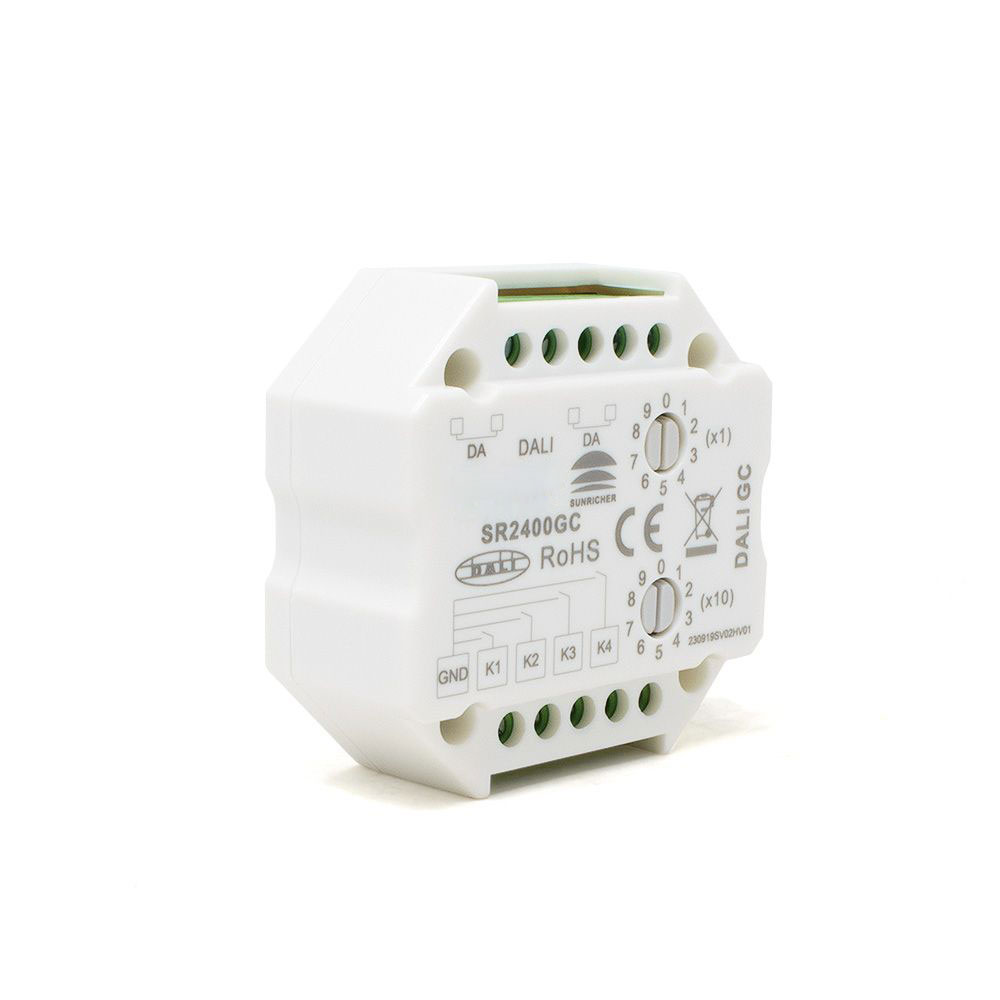

For projects where you need a simple method of dimming and switching up to four groups of lights using DALI protocols this compact DALI switch Module with a momentary switch / dim module is an ideal solution.

The unit is powered by the DALI BUS and there are connections for up to four momentary switches to control up to four consecutive groups of lights. The group address can be set using the module's rotary switches and then three consecutive groups can be controlled.

By pressing switch number one momentarily, the lights in the group set with the rotary group selecter switches will switch on and off or if you press and hold the switch the lighting in the group will dim up and down.

Pressing switch two will operate the next consecutive group in the sequence and so on for switches three and four.

For further details on this and our other professional Sunricher control products please contact our technical sales team by phone, email or via Live chat on our website.

Technical Specification
Product Code:    SR2400GC
Product Packed：    Gift box
Product Type：    Dimmer
Colour：    White
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Current：    4mA
Connectivity：    DALI protocols
Dimmable:    Yes
Relative Humidity：    8% to 80%
Operating Temp：    NA
