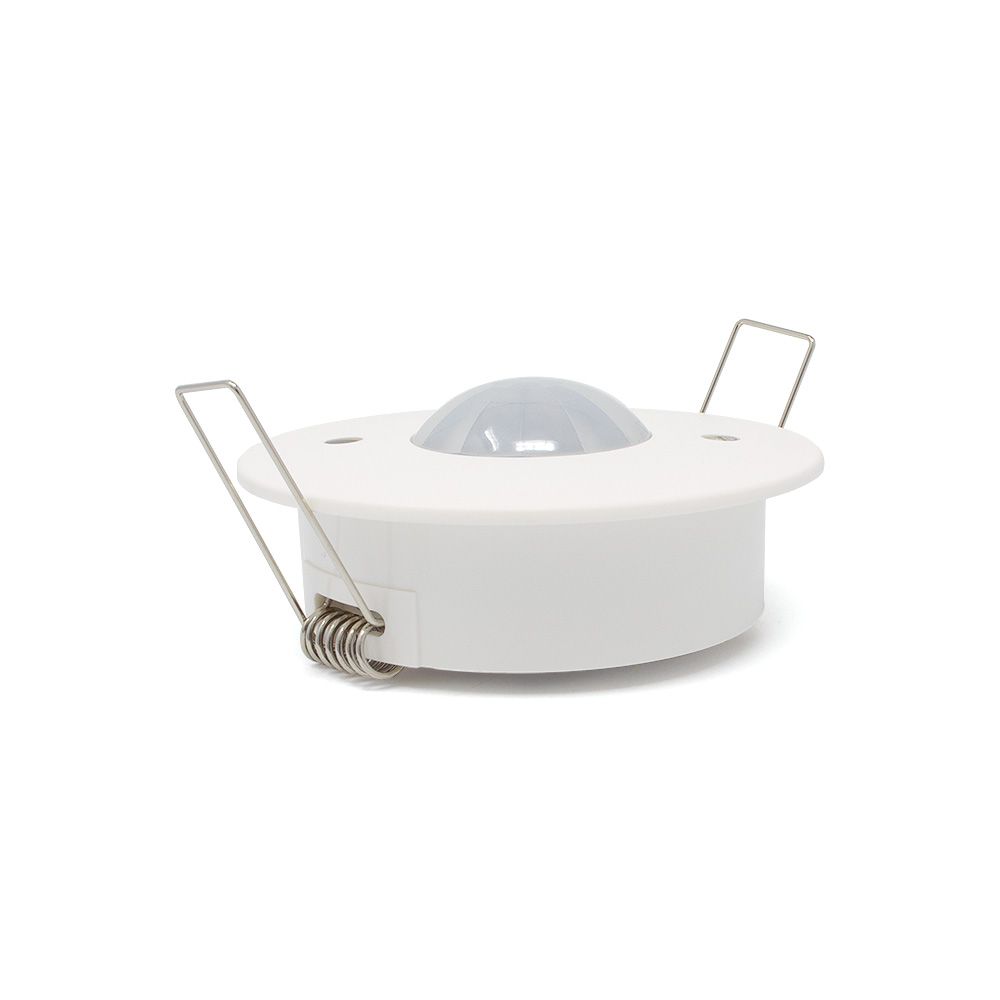

The SRDA9030APIR is a ceiling-mountable DALI-2 Lighting & PIR Sensor that can be configured from the DALI master program.

This ceiling PIR Sensor connects to the DALI BUS. This means there is no need for any additional power supply for the sensor to work. Once the DALI PIR Sensor has been connected to the DALI system, the DALI Master can then be used to program the sensor with all the various lighting control settings as required.

The device performs motion sensor detection with the PIR motion sensor and also the illuminance level and types of light using the smart light sensor.

An LED indicator is located at the bottom of the device. This indicator flashes Red when motion is detected and flashes Green when a DALI signal is detected from the application controller.

These DALI sensors offer a range of opportunities and are perfect for commercial installations such as:
Hospitals
Schools
Retail stores
Conference rooms
And many more suitable applications
Save money by automatically turning lights on when needed. The amount of time the unit keeps the lights on is configurable from the DALI-2 compliant central control unit or DALI Master.

For more information on these and all our other professional control products please contact our technical sales team by email phone or via live chat on our website.

Technical Specification
Product Code:    SRDA9030APIR
Product Packed:    Gift box
Product Type:    PIR Sensor
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Connectivity:    DALI protocols
Size    83mm diameter: 21mm depth.
Dimmable:    No
DALI Current Consumption:    6mA
Detection Angle:    130º
Motion Detection:    PIR Sensor
Light Sensor    Event: 0-1000 Lux (10bit), resolution: 10lux
Mounting Height:    Recommended Height: 8ft (2.5m)
Operating Temp:    0-40°C
