These compact multi-function motion sensors and light sensors are from our extensive Sunricher range. They are an ideal solution for use in Low Bay applications with a height of up to 2.5m in an area of 5m x 5m.

The various settings and parameters on these DALI PIR Sensors are accessed by a DALI-2 compliant central controller. This means you can change how the sensor works by adjusting it via the DALI Master controller.

The Lighting & PIR Sensor simply connects the DALI BUS and will report back to the DALI Master using bi-directional communications on the DALI BUS.

This professional DALI 2 sensor is ideal for use in both commercial and domestic environments and is for professional installation only.

The sensor motion detector is a microwave sensor and has an in-built light sensor to monitor the ambient light in a room. This means that it can be programmed to work under various levels of light so it will not activate unless the ambient light in a room is at a certain level. These smart lighting options can be set by the DALI Master.

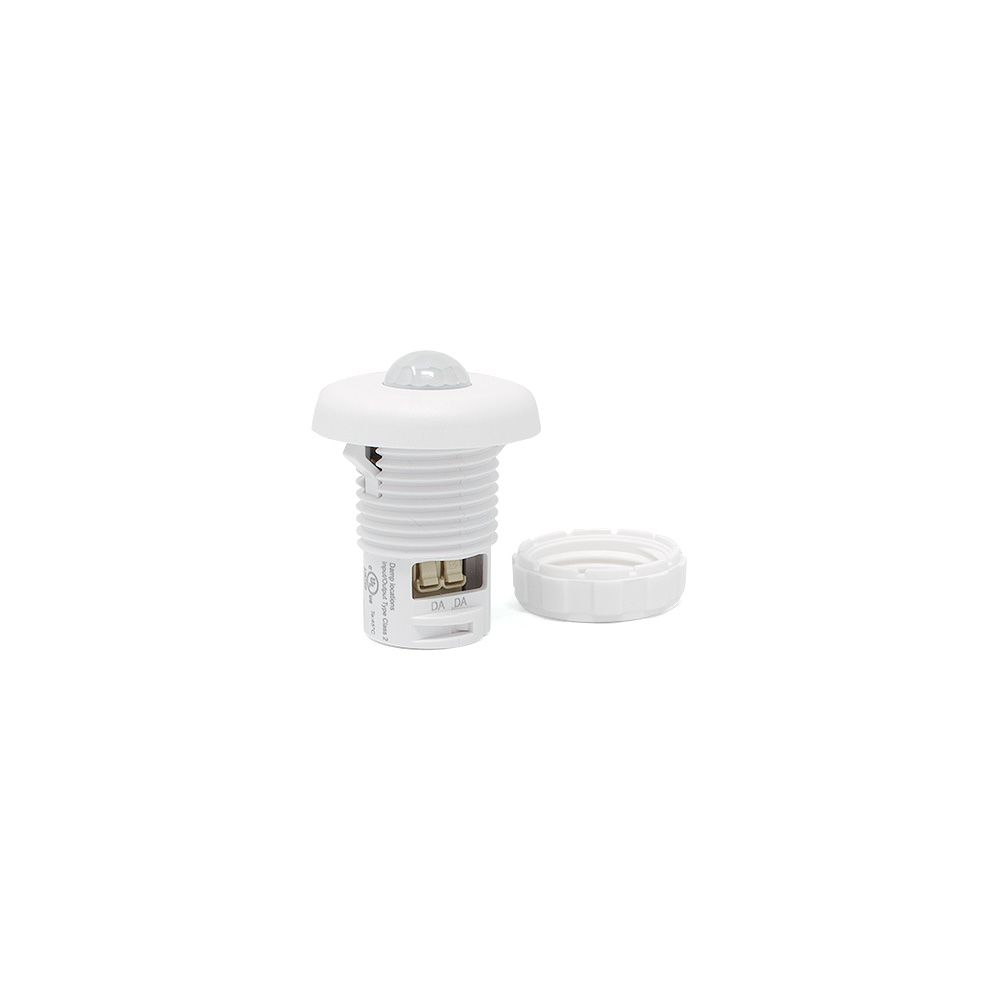

This compact sensor requires a mounting hole of just 20.4mm. The overall dimension of the sensor detector is just 32mm so it can be mounted just about anywhere.

For more information on our professional control products please contact our technical sales team by phone, email or via live chat on our website.

Technical Specification
Product Code:    SRDA9032APIR
Product Packed:    Gift box
Product Type:    PIR Sensor
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    DALI Bus Powered
Connectivity:    DALI protocols
Size:    36.3mm x 32mm diameter
Dimmable:    No
DALI Current Consumption:    6mA
Detection Angle:    130º
Detection Distance:    5m Diameter
Motion Detection:    PIR Sensor
Light Sensor    Event: 0-1000 Lux (10bit), resolution: 10lux
Operating Temp:    NA
