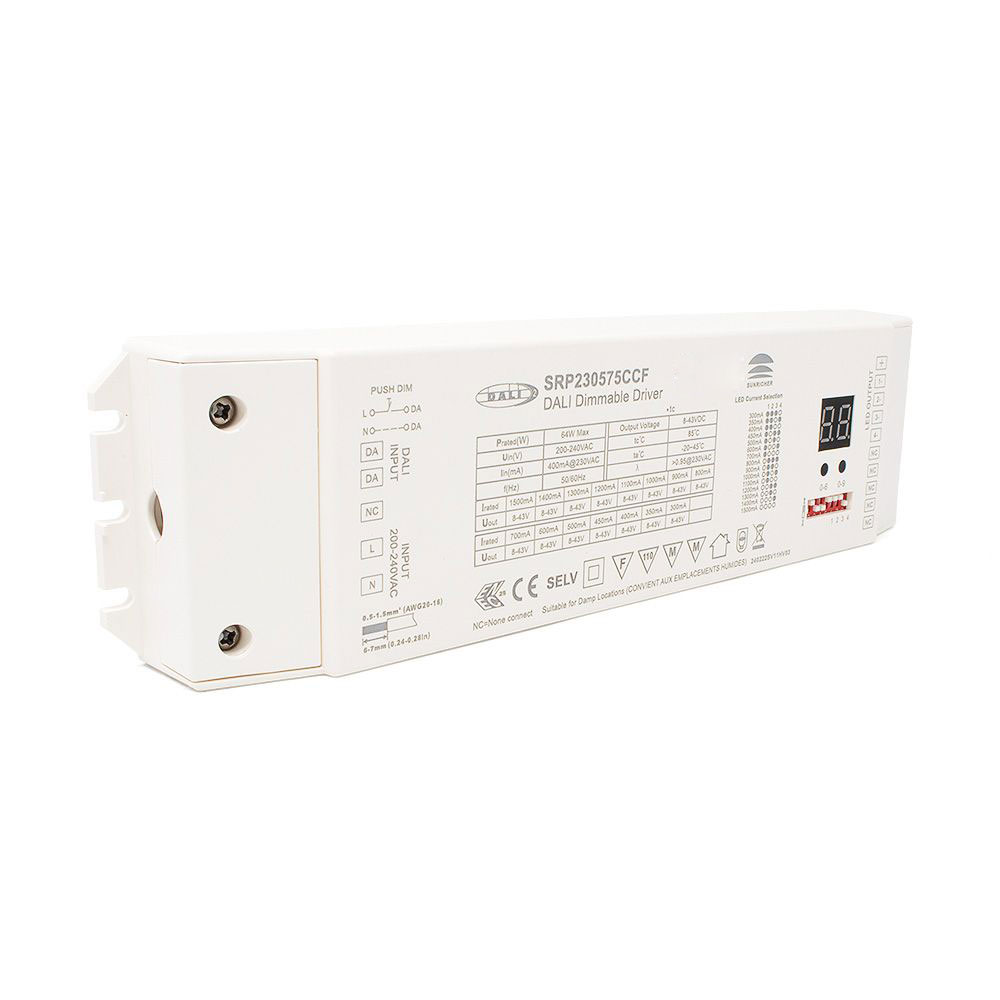

    Sunricher DALI Professional 75W 24V Constant Current DALI DT6 Driver

      (3 Reviews) | Write a review
    SKU: SRP230575CCF
    Discontinued
    Starting at: $269.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This DALI Protocol (Digital Addressable Lighting Interface) LED Driver features an adjustable output to control Single-colour, Dual-colour (CCT), Tri-Colour (RGB) or Quad-colour (RGBW) constant current LED Lights.

    This highly versatile, professional DALI DT6 Driver from our Sunricher range of lighting control products can be adjusted using the onboard menu buttons and digital display. These allow you to set the appropriate number of DALI addresses depending on how many output channels on the driver are required. The DALI Addresses can also be set automatically from the DALI Master Software as required.

    The dimming curve on this control gear is Logarithmic and the dimming method is PWM (Pulse Width Modulation). Built-in safety features ensure that should the unit encounter a Short Circuit, Over Load, or Over Temperature fault, the driver will reset once the fault has been removed.

    Using DALI DT6 protocols the DALI Driver is compatible with all DALI 2 products. A useful "PUSH DIM" function that will dim your products using a momentary switch can also be found on this product.

    Also featured on the driver is a memory function when using the in-PUSH DIM mode that will set the unit to come back on using the last dimming level set on the PUSH Dimmer.

    Note: The Driver will work in PUSH DIM mode or DALI mode, you cannot use DALI when using the PUSH DIM facility.

    The power input connection is 200V to 240V AC, 50/60Hz so you will need to connect the driver to a mains power supply, and then connect the constant current LED product you want to control and then set the required current value using the DIP switches.

    After the above steps, set the required channel addresses using the display and menu buttons. All that is then required is the connection to the DALI BUS line.

    Important Note: Please ensure the mains supply to the driver is powered off while you adjust the settings on the driver.

    For further information on this and our other professional control products, please contact our technical sales team by phone, email, WhatsApp or Live Chat through our website.

    Technical Specification
    Product Code:    SRP230575CCF
    Product Packed:    Gift box
    Product Type:    Controller / Driver
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Wattage:    75W
    Input Voltage:    200V - 240V AC
    Output Voltage:    8V-48V
    Output Current:    300mA - 1500mA
    Connectivity:    DALI protocols
    Size:    244 x 64 x 32mm
    Dimmable:    Yes
    Power Factor >:    0.9
    Voltage Type:    Constant Current
    Adjustable Dimming: Curve & Gamma Value    Yes
    Adjustable PWM:    No
    Relative Humidity:    10% - 95%
    DALI Channels:    1, 2, 3 and 4 Channel Adjustable
    RDM:    Not Applicable
    Input Voltage Range:    200V - 240V AC
    Leakage Current:    0.5mA/230V AC
    Short Circuit:    Yes recovers automatically after fault removed
    Over Load:    Yes recovers automatically after fault removed
    Working Temperature:    -20 to +45ºC
    Working Humidity:    10% to 95% Rh Non-condensing
    Storage Temperature:    -40 to +80ºC 10% to 95% RH
    Operating Temp:    0-40°C
