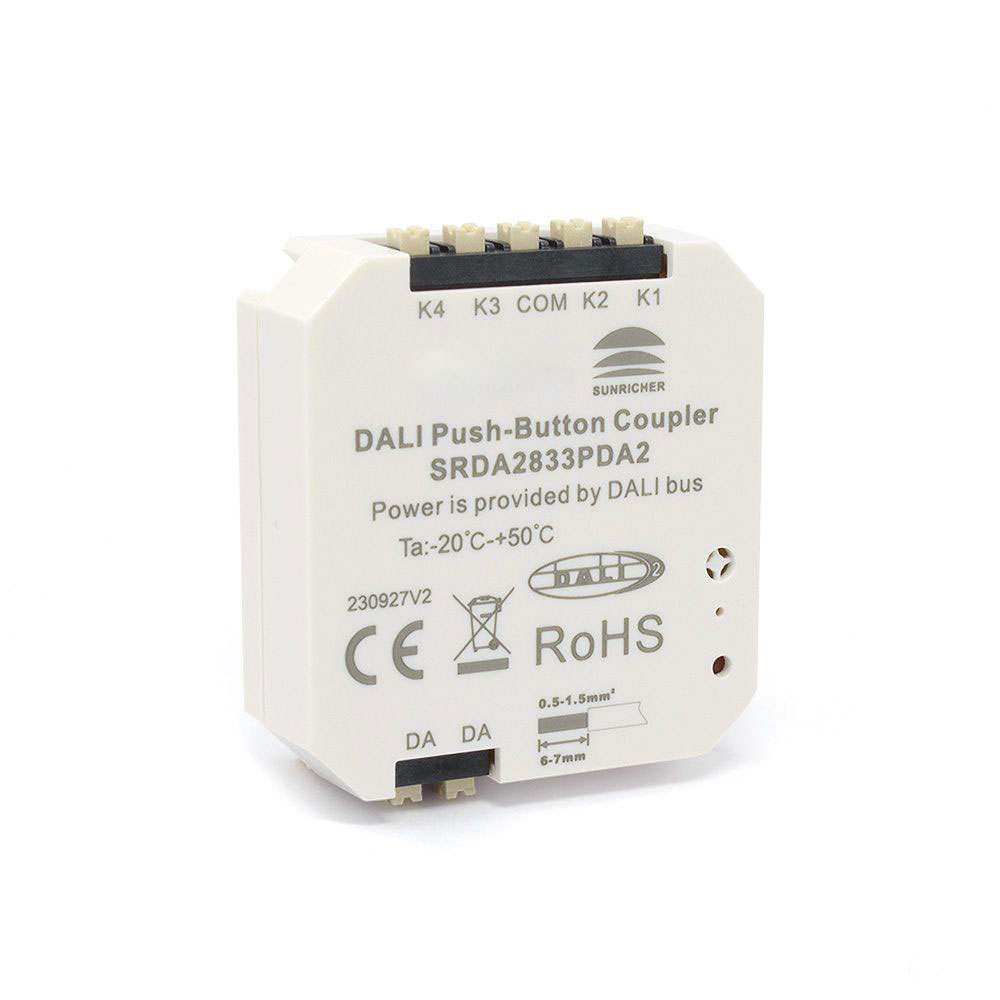

Using the latest DALI 2 protocols, this compact DALI Push Button coupler enables you to connect up to four "Push-Switches" to your existing DALI control system by simply connecting directly to the DALI BUS, there is no need for a power supply as the coupler takes its power from the DALI BUS.

Each of the four buttons on this coupler can be customised by the DALI Master software, so, for example, a button could be customised so that if it was pressed once it would switch on or off a light but if it was double pressed it could recall a scene for example or maybe switch the light on a 50% brightness. These parameters are all customisable from the DALI Master software. The DALI master can also generate an error code should a button be stuck on or if the button has been stuck on and then released. All are programable from the DALI Master software.

For more information on this and our other professional control products, please contact our technical sales team by phone, email or via live chat on our website.

Technical Specification
Product Code:    SRDA2833PDA2
Product Packed：    Gift box
Product Type：    Dimmer
Colour：    White
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Current：    3mA
Connectivity：    DALI protocols
Dimmable:    Yes
Relative Humidity：    8% to 80%
Operating Temp：    NA
