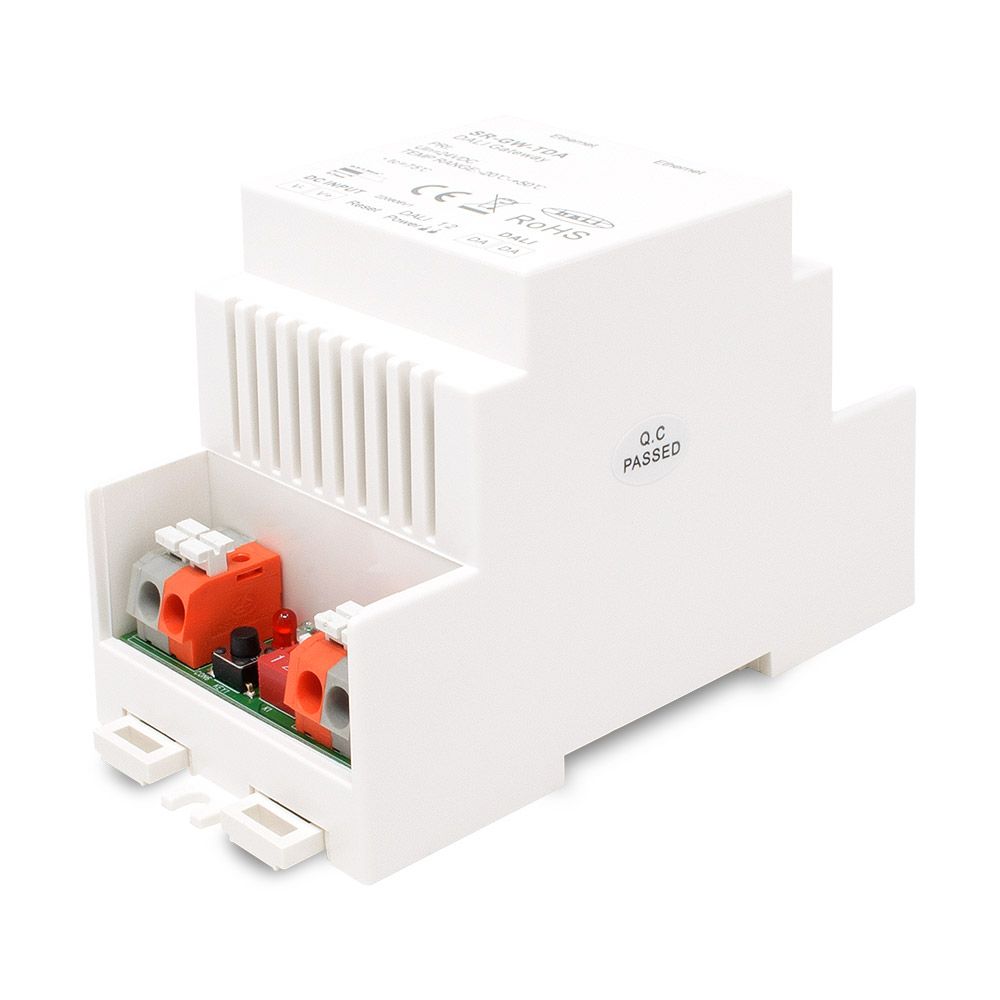

The Sunricher DALI Gateway enables you to control your DALI products wirelessly from your smart phone. This feature rich DIN mountable product connects to your wireless router through an RJ45 connection and multiple gateways can be linked together by daisy chaining the units together using the RJ45 in and out connections. When paired to either the intuitive smart phone applications "Light+Space" or "Tuya Smart" you can add products to rooms, group them as required and control all the products on the DALI network through the application. The DALI Gateway supports DALI 1 & DALI 2 products and is compatible with DALI DT6, DT8, DT8XY, DT8 RGBW device types. It supports addressing, grouping and scene configuration for a maximum of 64 units.

The Gateway has a built in battery and RTV and supports time task configuration. It has a Circadian Rhythm function enabled which will adjust your connected products according to environmental conditions.

Simply connect to your router and to a 24v driver to power the gateway, then connect all your products to the DALI output on the Gateway and download your preferred application to your smart phone.  The DALI Gateway automatically searches the DALI network, finds and assigns a DALI address to each connected product.  The Gateway has a built in DALI BUS PSU which can be switched off if required if you are connecting a separate DALI BUS PSU and the unit supports over the air updates both automatically or manually as required.

Technical Specification
Product Code:    SRGWTDA
Product Packed：    Gift box
Product Type：    DALI Gateway
IP Rating：    IP20 Non-Waterproof
Guarantee Period：    5 Years
Input Voltage：    24V DC
Output Voltage：    12-22.5V DC
Output Current：    250mA max
Size:    110 x 53 x 65mm
Dimmable:    No
DALI Channels:    1
DALI Current Consumption:    Max. 2mA
Operating Temp:    -20~50°C
