This touch sensitive DMX wall panel is from the Sunricher range. This control panel is designed to work with all DMX512 5 channel decoders as well as SR2811RF Sunricher RF handset. The wall panel is a single zone unit.
These are ideal installations for technical lighting projects such as stage lighting for theatre or film. It is ideal for commercial and domestic market where DMX control of your RGBW LED lighting is required. It is highly reliable and a high quality product.
The effortless adjustment of 4 channels enable you to achieve the perfect lighting for the space required.
Instant colour selection is available using the touch sensitive disc on the LED DMX controller. It is possible to adjust the individual brightness levels of all four channels individually. This enables you to achieve the perfect colour mix, from bright bold colours to light pastel colours.
It also allows the ability to adjust the brightness between 0% - 100%. This is compatible with a range of Quad colour LED lighting products such as LED strip lights.
The DMX remote control features one programmable scene that can be effortlessly recalled at a touch of a button.
This DMX lighting controller offers ten built in light effects. Along side this is a pause function, giving you easy and effortless control over your lighting fixtures.
This DMX LED controller is compatible with a range of 5 channel DMX decoders. It is also compatible with Sunricher RF handset due to the in built RF receiver. This will enable you to easily control your lighting projects.
The DMX wall panel requires a 12V or 24V DC power supply. It must be in conjunction with a suitable DMX512 decoder for full control over your LED lighting products.

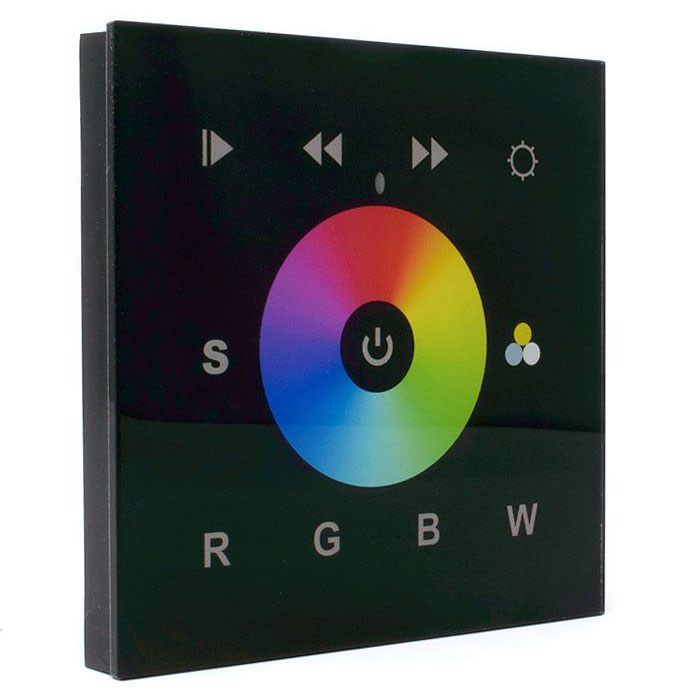

The wall mounted LED lighting controller has an attractive black finished touch sensitive glass panel.

Technical Specification
Product Code:    SR2811DMXRFBLK
Product Packed:    Gift box
Product Type:    Controller
Colour:    Black
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    12v / 24v DC
Connectivity:    DMX 512 protocols
PCB Weight:    Not Applicable
Size:    86 x 86 x 29.1mm
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Wireless Range:    Up to 20 metres
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Low Voltage
Relative Humidity:    8% to 80%
Operation Frequency:    869.5 / 916.5 / 434MHz
Operating Temp:    0-40°C
