Sunricher DMX CCT One Zone Wall Panel White (Low voltage)
This touch sensitive DMX wall panel is from the Sunricher range. This control panel is designed to work with all DMX512 5 channel decoders in a single zone.
These are ideal installations for technical lighting projects such as stage lighting for theatre or film. It is ideal for commercial and domestic market where DMX control of your dual colour LED products.
Effortlessly adjust the colour temperature between warm and cool white using the touch sensitive slider on the LED DMX controller. It also allows the ability to adjust the brightness between 0% - 100%. This is compatible with a range of Dual colour LED lighting products such as LED strip lights.
The DMX remote control features three programmable scene that can be effortlessly recalled at a touch of a button.
The DMX LED controller allows easy control of your lighting fixtures to create the perfect light effect for the required space
This DMX LED controller is compatible with a range of 5 channel DMX decoders. This will enable you to easily control your lighting projects.
The DMX wall panel requires a 12V or 24V DC power supply. It must be in conjunction with a suitable DMX512 decoder for full control over your LED lighting products.

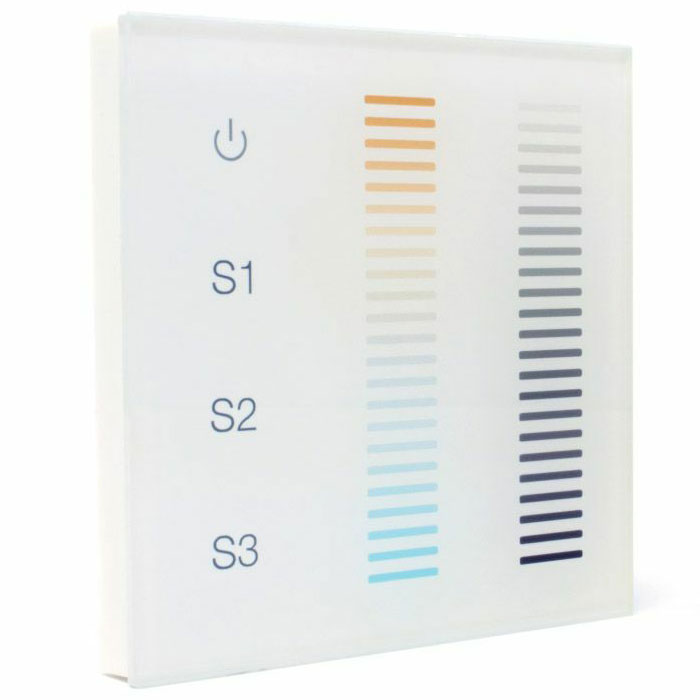

The wall mounted LED lighting controller has an attractive white finished touch sensitive glass panel.
Technical Specification
Product Code: SR2834BDMXWH
Product Packed: Gift box
Product Type: Controller
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 12v / 24v DC
Connectivity: DMX 512 protocols
PCB Weight: Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Low Voltage
Relative Humidity: 8% to 80%
Operating Temp: 0-40°C
