Sunricher DMX Dual Channel Constant Current 50w DMX Driver with RDM

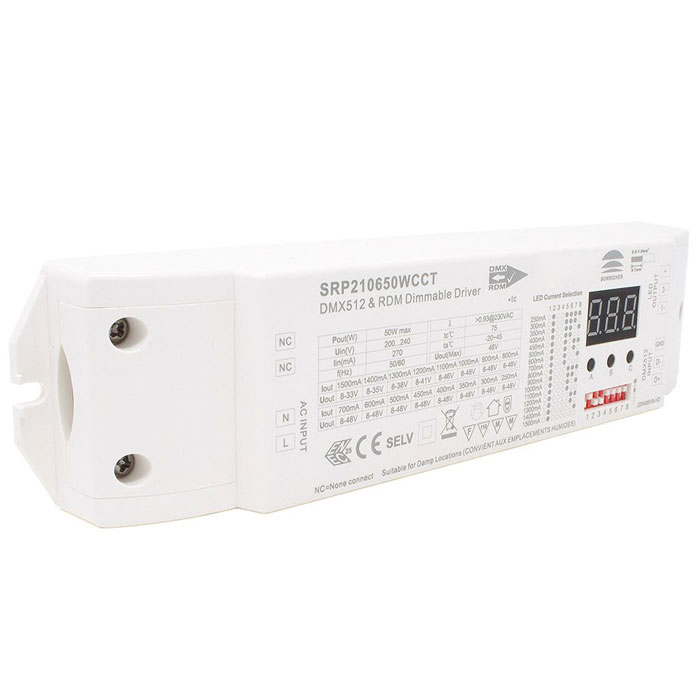

The SRP210650WCCT constant current DMX decoder is a professional grade DMX512 decoder that is also RDM compatible. This allows intercommunication between the decoder and an RDM enabled DMX Desk.
Adjust the various parameters of the dual-channel memory decoder remotely using this DMX mode. The current settings have to be set using the dip switches on the decoder. These can be configured for constant current products in 16 steps between 250mA and 1500mA.
The maximum load on the DMX driver is 50W. The mains input voltage that can be accepted by the driver should be between 200V - 240V AC at 50/60Hz. The driver has a high power factor value of >0.93 and a low inrush current of just 2A at 230V AC.
This product is suitable for controlling Single Colour or Dual White (CCT) colour temperature adjustable constant voltage products up to 50W.
The various parameters of the driver can be set manually using the menu buttons and the digital interface. From this interface you can:
Set the starting address for the DMX driver
Set the DMX address from 001 to 512
Change the DMX memory channel quantity (Single channel mode for single colour LEDs or dual-channel DMX for tunable white LEDs)
Adjust the PWM frequency up to 2KHz
Set the Dimming Curve Gamma value to different Linear or Logarithmic values.
Three are various protection circuits to ensure the longevity of this product. These include Short circuits, Over Voltage and Over Temperature protection. The driver will all automatically recover after the fault is removed.
Technical Specification
Product Code: SRP210650WCCT
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: DMX 512 Driver
Colour: White
IP Rating: IP20 Non-Waterproof
PWM Frequency: 500Hz - 2KHz
Guarantee Period: 5 Years
Wattage: 50w
Input Voltage: 200 - 240v AC
Output Voltage: 8-48v
Connectivity: DMX 512 protocols
PCB Weight: Not Applicable
Size: 210 x 50 x 32mm
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Power Factor >: 0.93
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Current
Max Bend: Not Applicable
Adjustable Dimming Curve & Gamma Value: Yes
Adjustable Bit Rate: No
Adjustable PWM: Yes
Relative Humidity: 10% - 95%
RDM: Yes
Operating Temp: 0-40°C
