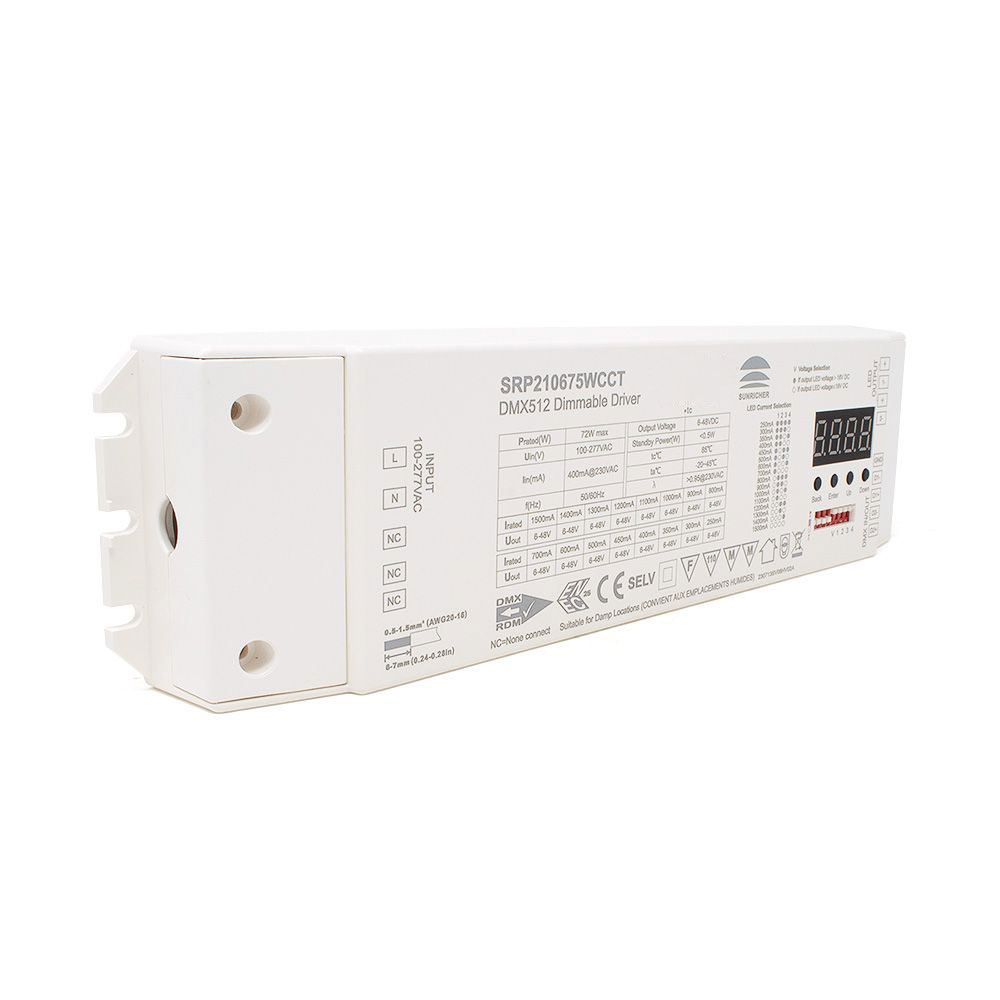

    Sunricher DMX Dual Channel Constant Current 75W DMX Driver with RDM

      (10 Reviews) | Write a review
    SKU: SRP210675WCCT
    Discontinued
    Starting at: $289.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    The SRP210675WCCT constant current DMX decoder is a professional grade DMX512 decoder with RDM allowing bi-directional communication between the decoder and an RDM-enabled DMX Desk.

    The current settings have to be set using the dip switches on the decoder. These can be configured for constant current products between 250mA and 1500mA.

    The maximum load on the DMX driver is 75W. The mains input voltage is from 100V - 277V AC at 50/60Hz and the driver has a high power factor value of >0.93 and a low inrush current of just 2A at 230V AC.

    This product is suitable for controlling Single Colour or Dual colour (CCT) colour temperature adjustable constant current products up to 75W.

    The various parameters of the driver can be set manually using the menu buttons and the digital interface are:
    DMX address
    Change the DMX memory channel quantity (Single channel mode for single-colour LEDs or dual-channel DMX for tunable white LEDs)
    Adjust the PWM frequency from 500Hz to 30KHz
    Adjustable BIT rate 8 BIT or 16 BIT
    Set the Dimming Curve Gamma value to various Linear or Logarithmic values.
    The driver has a Short circuit, Over Voltage and Over Temperature protection built in and it will automatically recover after the fault is removed.

    Please contact our technical sales team by phone, email or through live chat on our website.

    Technical Specification
    Product Code:    SRP210675WCCT
    Product Packed:    Gift box
    Product Type:    DMX 512 Driver
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    PWM Frequency:    500Hz - 30KHz
    Guarantee Period:    5 Years
    Wattage:    75W
    Input Voltage:    100V - 240V AC
    Output Voltage:    8V-48V
    Output Current:    250mA to 1500mA
    Connectivity:    DMX 512 protocols
    Size:    244 x 64 x 32mm
    Dimmable:    Yes
    Power Factor >:    0.93
    Voltage Type:    Constant Current
    Adjustable Dimming Curve & Gamma Value:    Yes
    Adjustable Bit Rate:    Yes
    Adjustable PWM:    Yes
    Relative Humidity:    10% - 95%
    RDM:    Yes
    Operating Temp:    0-40°C
