    Sunricher DMX Dual Colour (CCT) Four Zone Wall Panel White (Low voltage)

      (9 Reviews) | Write a review
    SKU: SBL-SR2822CCTZ4DMXWH
    Discontinued
    Starting at: $104.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    This touch sensitive DMX wall panel is from the Sunricher range. This control panel is designed to work with all DMX512 5 channel decoders in a four zones.
    These are ideal installations for technical lighting projects such as stage lighting for theatre or film. It is ideal for commercial and domestic market where DMX control of your dual colour (CCT) LED lighting products is required.
    Effortlessly adjust colour temperature using the touch sensitive disc on the LED DMX controller. You can then adjust the brightness of the colour temperature to create the perfect blend of the chosen colour. It is possible to control up to 4 zones together or individually. This is compatible with a range of dual colour LED lighting products such as LED strip lights.
    The DMX LED controller allows easy control of your lighting fixtures to create the perfect light effect for the required space.
    The DMX remote control features four programmable scenes that can be effortlessly recalled at a touch of a button.
    This DMX lighting controller is compatible with a range of 5 channel DMX decoders. This will enable you to easily control your lighting projects.
    The DMX requires a 12V, 24V or 36V DC power supply. It must be in conjunction with a suitable DMX512 decoder for full control over your LED lighting products.

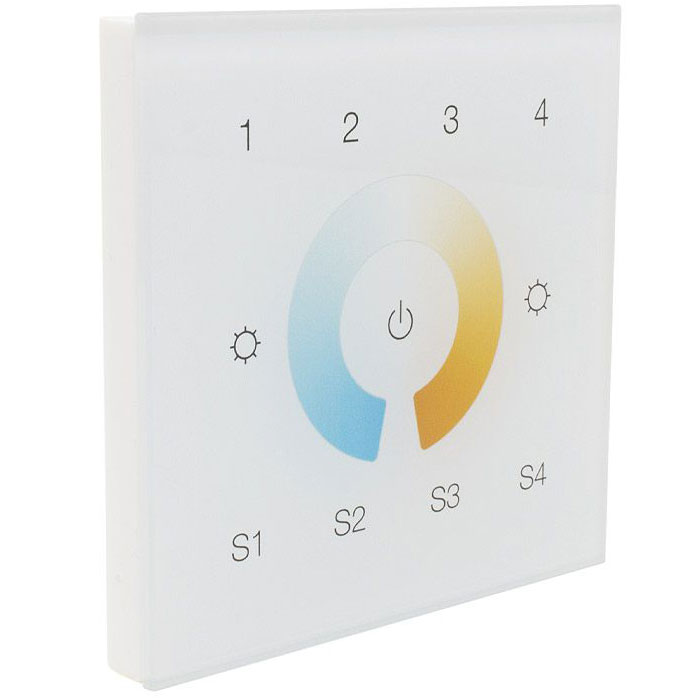

    The wall mounted LED lighting controller has an attractive white finished touch sensitive glass panel.

    Technical Specification
    Product Code:    SR2822CCTZ4DMXWH
    Product Packed:    Gift box
    Product Type:    Controller
    Colour:    White
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Current:    15mA
    Input Voltage:    12v / 24v DC
    Connectivity:    DMX 512 protocols
    PCB Weight:    Not Applicable
    Size:    86 x 86 x 41mm
    CRI Rating (greater than):    CRI >80
    Dimmable:    Yes
    LED Type:    Not Applicable
    Average LED life Hrs:    30,000
    Colour Temperature Variation:    IP20 No
    Power Factor >:    Not Applicable
    Continuous Operation:    Not suitable for 24/7 continuous use
    Voltage Type:    Low Voltage
    Relative Humidity:    8% to 80%
    Operating Temp:    0-40°C
