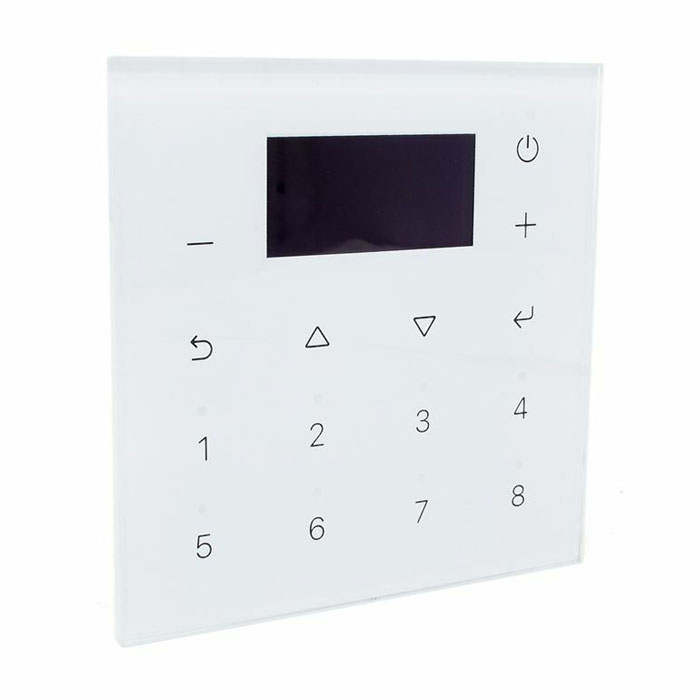

Sunricher DMX Master Controller Wall Panel (Mains Powered)
This master wall mounted control panel is from the Sunricher range. This control panel is designed to work with all DMX512 5 channel decoders. The wall panel is a 16 zone unit.
This LED DMX controller is an ideal installation for technical lighting projects such as stage lighting for theatre or film. It is also ideal for commercial and domestic market where DMX control of your RGBW+CCT LED lighting is required.It is highly reliable and a high quality product.
The effortless adjustment of 4 channels enable you to achieve the perfect lighting for the space required.
Instant colour selection is available using the touch sensitive function keys on the DMX remote control. Effortlessly select Effortlessly select a colour temperature from cool, daylight or warm white colours. This enables you to achieve the perfect colour mix, from bright bold colours to light pastel colours.
It also allows the ability to adjust the brightness between 0% - 100%. This is compatible with a range of LED lighting products such as LED strip lights, whether they are single, dual or quad colour LEDS.
The digital user interface makes the DMX LED lighting controller extremely user friendly.
The DMX lighting controller features 8 programmable scenes. The personalised setting can be easily recalled at a touch of a button. It also features 24 time schedules for each zone as well as 8 cycles to give you complete freedom and control.
The DMX LED controller is compact but allows easy control of your lighting fixtures to create the perfect light effect for your lighting project.
This DMX LED controller is compatible with a range of 5 channel DMX decoders. This will enable you to easily control your lighting projects.
The DMX wall mounted control panel requires a 100v - 240v AC power supply. It must be in conjunction with a suitable DMX512 decoder for full control over your LED lighting products.
The wall mounted LED lighting controller has an attractive white finished touch sensitive glass panel.
Technical Specification
Product Code: SR2847
Product Packed: Gift box
Product Type: Controller
Colour: White / Glass
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage:100v - 240v AC
Connectivity: DMX 512 protocols
PCB Weight: Not Applicable
Size: 86 x 86 x 41mm
CRI Rating (greater than): CRI >80
Dimmable: No
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Mains Voltage
Relative Humidity: 8% to 80%
Operating Temp: 0-40°C
