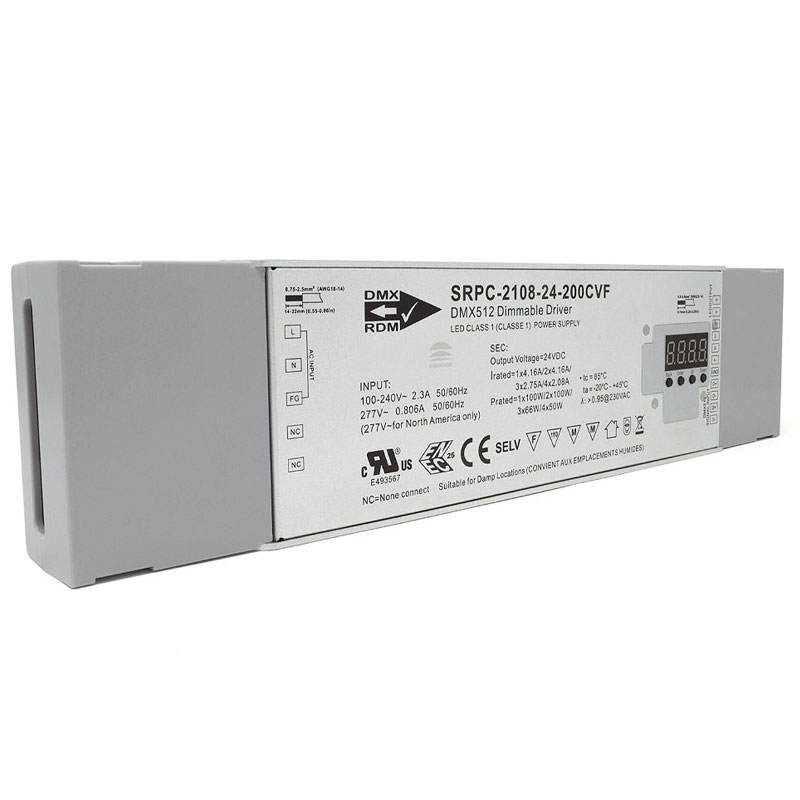

This high-quality, professional 200w, 4-channel DMX Decoder/Driver is available from our range of Sunricher control systems. This DMX LED controller is a UL, ENEC and TUV-approved product and features RDM bi-directional communications (when used with an RDM-enabled DMX controller).
With a 24v constant voltage output and a 100v to 277v AC universal input, this DMX driver has many professional features. These features include:
Settable DMX addresses on the high-quality digital display screen.
An adjustable PWM frequency (500Hz to 30kHz)
Adjustable PWM output resolution (8bit and 16bit)
Adjustable Gamma-Ray dimming curve from 0.1 to 9.9
Logarithmic or linear dimming options
The unit can be set to 1, 2, 3 or 4 DMX channel modes and it has a power factor of over 0.9 which is greater than 90%. The driver offers smooth dimming with no flickering and when dimming the driver is silent with no audible buzz.
This driver can be used with our range of LED strip lights and other LED lighting units. The 4 channels allow this unit to communicate with a single colour, dual white LEDs, RGB & RGBW LED tape.
This DMX driver is ideal for use in TV studios with professional filming equipment as there is no banding or flickering when dimming.
Technical Specification
Product Code: SRPC210824200WCVF
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: DMX 512 Driver
Colour: Brushed Aluminium
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 200w
Current: 4 x 2.08A
Input Voltage: 100v - 240v AC
Output Voltage: 24v DC
Connectivity: DMX 512 protocols
PCB Weight: Not Applicable
Size: 330 x 79 x 39mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: 90
Wireless Range: Up to 30 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Adjustable Dimming Curve & Gamma Value: Yes
Adjustable Bit Rate: Yes
Adjustable PWM: Yes
Relative Humidity: 8% to 80%
RDM: Yes
Operating Temp: -20 to +45
