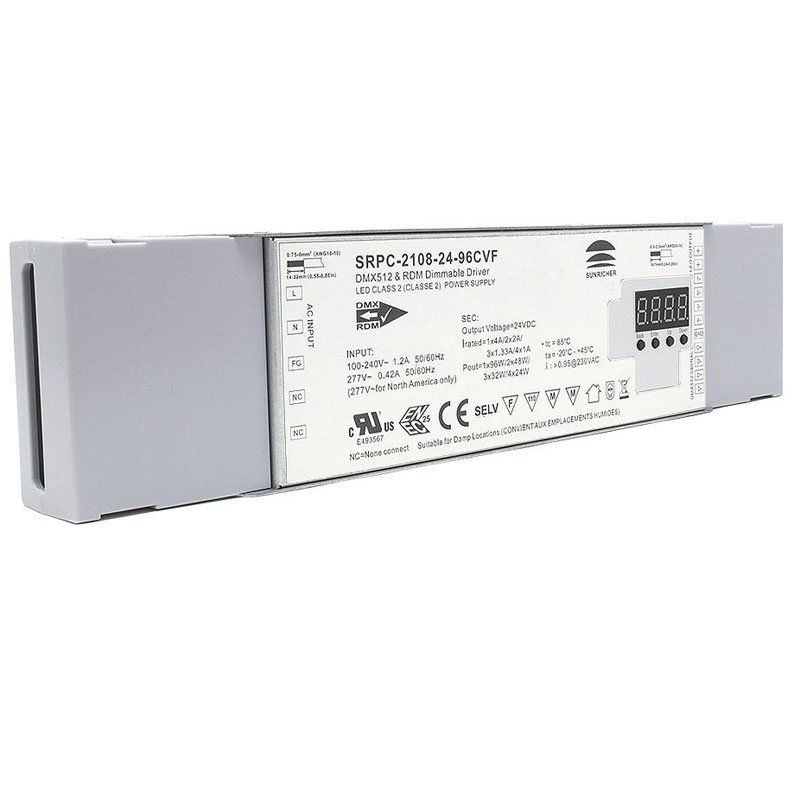

Sunricher DMX Professional 4 Channel 24v 96w DMX Driver with RDM
This high-quality, professional 96W, four-channel DMX Driver is available from our professional range of Sunricher DMX LED control systems. This product is built with high-quality components.
This DMX LED driver is a UL, ENEC and TUV-approved product. It also features RDM bi-directional communications (when used with an RDM-enabled DMX controller).
With a 24v constant voltage output and a 100v to 277v AC universal input, this DMX 512 driver has many professional features including:
An adjustable PWM frequency (500Hz to 30kHz)
Adjustable PWM output resolution (8bit and 16bit)
Adjustable Gamma-Ray dimming curve from 0.1 to 9.9 with logarithmic or linear dimming options
The unit can be set to 1, 2, 3 or 4 channel modes and it has a power factor of over 0.9 which is greater than 90%. The DMX lighting controller driver offers smooth dimming with no flickering and when dimming the driver is silent with no audible buzz.
This DMX driver is ideal for use in TV studios with professional filming equipment as there is no banding or flickering in the LED lighting effects when dimming. LED Technologies supply a wide range of suitable LED tapes in single colours and white LED strips.
Technical Specification
Product Code: SRPC21082496CVF
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Driver
Colour: Brushed Aluminium
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 96w
Input Voltage: 100v - 240v AC
Output Voltage: 24v DC
Connectivity: DMX 512 protocols
PCB Weight: Not Applicable
Size :300 x 70 x 36mm
CRI Rating (greater than): CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: 90
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Adjustable Dimming Curve & Gamma Value: Yes
Adjustable Bit Rate: Yes
Adjustable PWM: Yes
Relative Humidity: 8% to 80%
Operating Temp: -20 to +45
