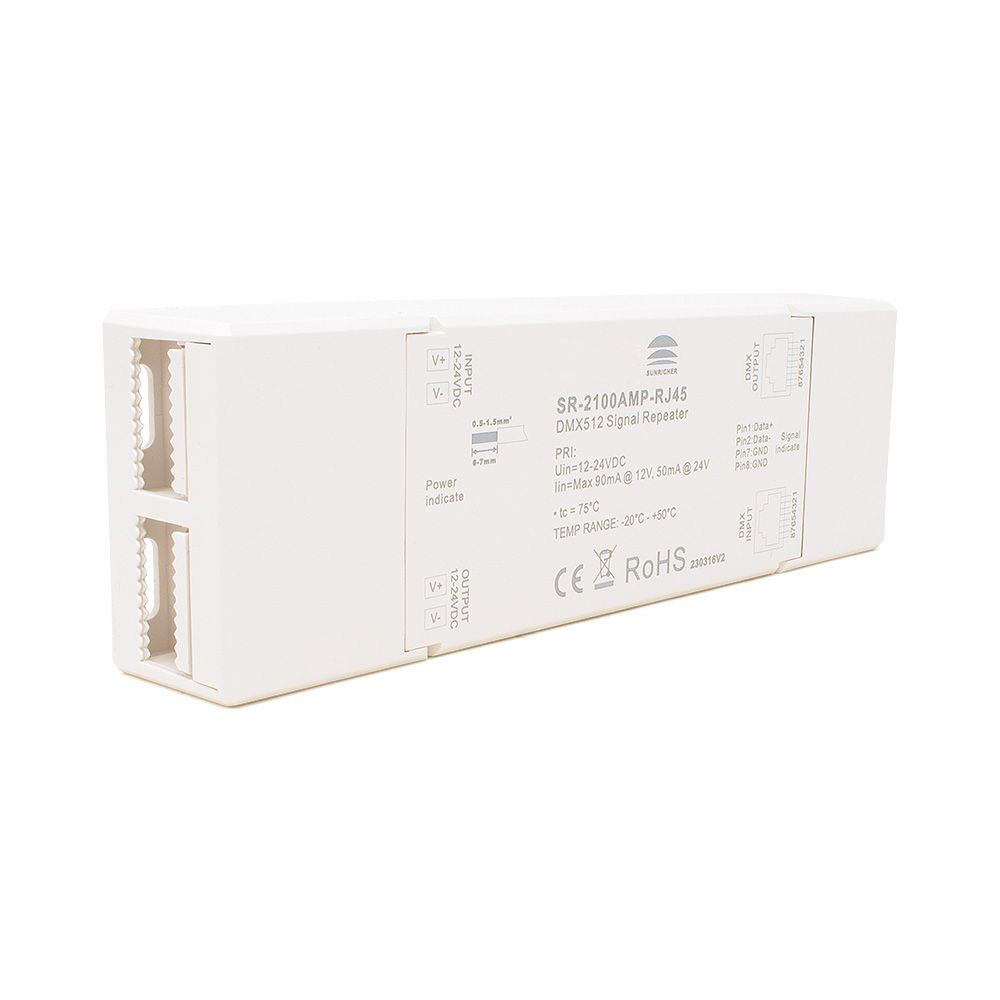

Sunricher DMX Professional DMX Signal Booster RJ45
This compact but powerful DMX Signal booster allows you to connect up to 12 x additional DMX decoders or DMX devices into your DMX system. It effectively boosts the DMX signal up to an additional 100m so it is perfect for projects that require DMX products to be spaced out over a distance. For longer DMX lengths, additional DMX Signal boosters can be incorporated as required.
The unit features plug and play input and output RJ45 for fast connection of your DMX signal, and then simply connect a 12v DC or 24v DC supply to power the unit making it easy to set up and use. The in-built LED indicates the presence of a DMX signal and there is also an LED to indicate that power is connected to the unit. There is a 120 Ohm 0.5w resistor supplied with each unit which should be connected between the DMX + & - output terminals on the last DMX product or decoder in the chain, this will stop DMX signal bounce back.
For more information on this or any of our professional DMX products, please contact our technical sales team by phone, email or live chat on our website.
Technical Specification
Product Code: SR2100AMPRJ45
Product Packed: Gift box
Product Type: Data Amplifier
Colour: White
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 12V / 24V DC
Connectivity: DMX 512 protocols
Size: 170 x 53.4 x 28mm
Dimmable: Yes
Voltage Type: Constant Voltage
Adjustable Dimming Curve & Gamma Value: Not Applicable
Adjustable Bit Rate: Not Applicable
Adjustable PWM: No
Relative Humidity: 8% to 80%
RDM: No
Operating Temp: 0-40°C
