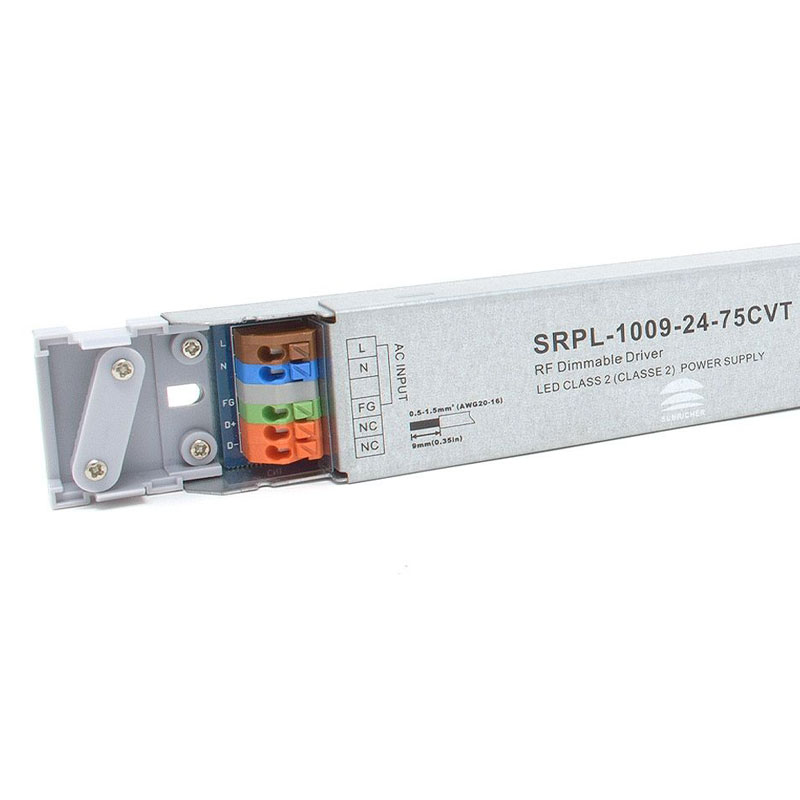

    Sunricher DMX / RDM 2 Channel 24v 75w Slim Style DMX Driver

      (4 Reviews) | Write a review
    SKU: SBL-SRPL21082475CVT
    Discontinued
    Starting at: $166.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Nov,24 and Sat,Nov,30. order with 2days,9hrs and 31 min.

    This high-quality, professional 75W Dual-channel DMX Driver is available from our professional range of Sunricher DMX LED control systems. This product is built with high-quality components.
    This DMX LED driver is a UL, ENEC and TUV-approved product. It also features RDM bi-directional communications (when used with an RDM-enabled DMX controller).
    With a 24V constant voltage output and a 100v to 277v AC universal input, this DMX 512 driver has many professional features including:
    An adjustable PWM frequency (500Hz to 30kHz)
    Adjustable PWM output resolution (8bit and 16bit)
    Adjustable Gamma-Ray dimming curve from 0.1 to 9.9 with logarithmic or linear dimming options
    The unit can be set to 1, 2, 3 or 4 channel modes and it has a power factor of over 0.9 which is greater than 90%. The DMX lighting controller driver offers smooth dimming with no flickering and when dimming the driver is silent with no audible buzz.
    This DMX driver is ideal for use in TV studios with professional filming equipment as there is no banding or flickering in the LED lighting effects when dimming. LED Technologies supply a wide range of suitable LED tapes in single colours and white LED strips.


    Technical Specification
    Product Code:    SRPL21082475CVT
    Product Packed:    Gift box
    Manufacturer:    LED Technologies
    Product Type:    Controller / Driver
    Colour:    Brushed Aluminium
    Guarantee Period:    5 Years
    Current:    3.12A
    Input Voltage:    100v - 240v AC
    Output Voltage:    24v DC
    Connectivity:    DMX 512 protocols
    PCB Weight:    Not Applicable
    Size:    486 x 30.7 x 20.9mm
    CRI Rating (greater than):    CRI >80
    Dimmable:    Yes
    LED Type:    Not Applicable
    Average LED life Hrs:    30,000
    Colour Temperature Variation:    IP20 No
    Power Factor >:    Not Applicable
    Continuous Operation:    Not suitable for 24/7 continuous use
    Voltage Type:    Constant Voltage
    Adjustable Dimming Curve & Gamma Value:    Yes
    Adjustable Bit Rate:    Yes
    Adjustable PWM:    Yes
    Relative Humidity:    8% to 80%
    RDM:    Yes
    Operating Temp:    -20 to +45
