This touch sensitive DMX wall panel is from the Sunricher range. This control panel is designed to work with all DMX512 5 channel decoders in a four zones.
These are ideal installations for technical lighting projects such as stage lighting for theatre or film. It is ideal for commercial and domestic market where DMX control of your single colour LED lighting products is required.
Effortlessly adjust the brightness between 0% - 100% using the touch sensitive disc on the LED DMX controller. It is possible to control up to 4 zones together or individually. This is compatible with a range of single colour LED lighting products such as LED strip lights.
The DMX remote control features four programmable scenes that can be effortlessly recalled at a touch of a button.
The DMX LED controller allows easy control of your lighting fixtures to create the perfect light effect for the required space.
This DMX LED controller is compatible with a range of 5 channel DMX decoders. This will enable you to easily control your lighting projects.
The DMX wall panel requires a 12V, 24V or 36V DC power supply. It must be in conjunction with a suitable DMX512 decoder for full control over your LED lighting products.

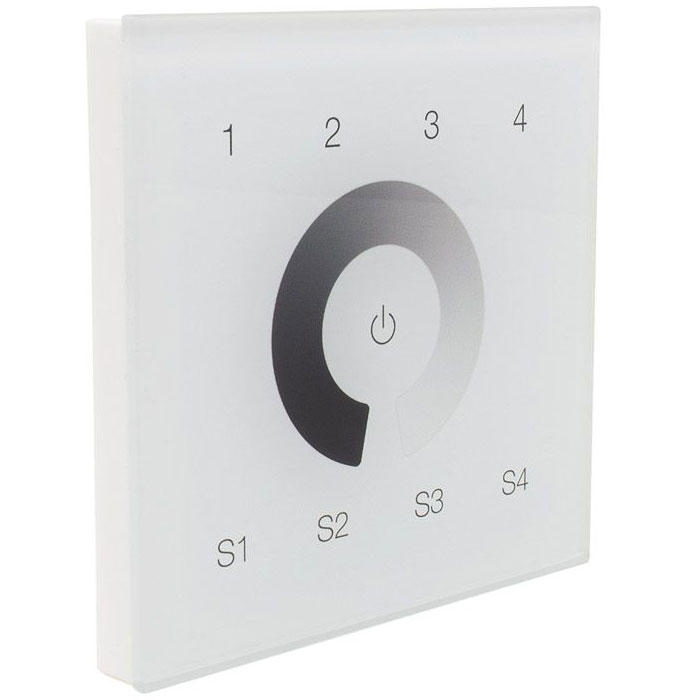

The wall mounted LED lighting controller has an attractive white finished touch sensitive glass panel.

Technical Specification
Product Code:    SR2822DIMZ4DMXWH
Product Packed:    Gift box
Product Type:    Controller
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Current:    15mA
Input Voltage:    12v / 24v DC
Connectivity:    DMX 512 protocols
PCB Weight:    Not Applicable
Size:    86 x 86 x 41mm
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Mains Voltage
Relative Humidity:    8% to 80%
Operating Temp:    0-40°C
