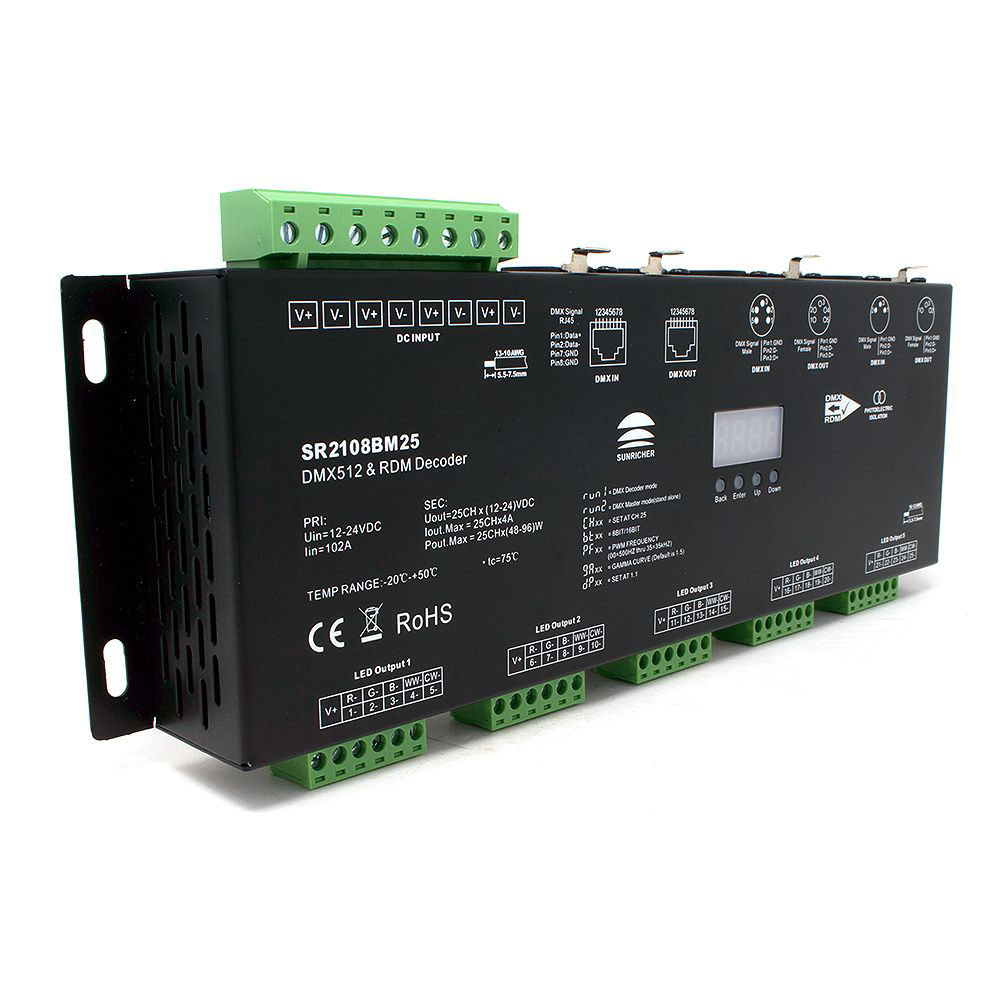

The Sunricher SR2108BM25 is a professional 25 x Channel DMX Decoder with master mode for basic control of your 12V or 24V LED lighting products. The RDM feature allows you to set up and adjust many of the Decoder's functions remotely when used with an RDM enabled DMX512 controller.
With an array of DMX input / output connections include 3pin XLR, 5pin XLR and RJ45 connectors this feature rich DMX512 decoder is easy to connect to your DMX controller. The 25 channel outputs are conveniently split into 5 x 5 channel output terminal blocks for your RGB+CCT lighting products you can control your lighting up to 4A per channel.
The menu buttons and large, bright digital display is easy to use, and enables you to set up the various professional parameters quickly and accurately. With its 8 or 16BIT output and an adjustable PWM frequency up to 35KHz this professional DMX decoder is ideal for use in the TV and film production industry illuminating banding and flickering and the GAMMA Dimming curve adjustment will select a choice of dimming curves that is perfect for most applications.
For more information on this or our many other professional LED control products please call our technical sales team or contact them by email or live chat on our website.

Technical Specification
Product Code:    SR2108BM25
Product Packed:    Gift box
Product Type:    DMX 512 Decoder
Colour:    Black
IP Rating:    IP20 Non-Waterproof
PWM Frequency:    500Hz to 30KHz Adjustable
Guarantee Period:    5 Years
Input Voltage:    12V / 24V / 36V DC
Output Voltage:    12V / 24V / 36V DC
Connectivity:    DMX 512 protocols
Size:    187.7x85.3x41mm
Dimmable:    No
Voltage Type:    Constant Voltage
Adjustable Dimming Curve & Gamma Value:    Yes
Adjustable Bit Rate:    Yes
Adjustable PWM:    Yes
Relative Humidity:    8% to 80%
RDM:    Yes
Unit Weight:    1072g
Operating Temp:    0-40°C
