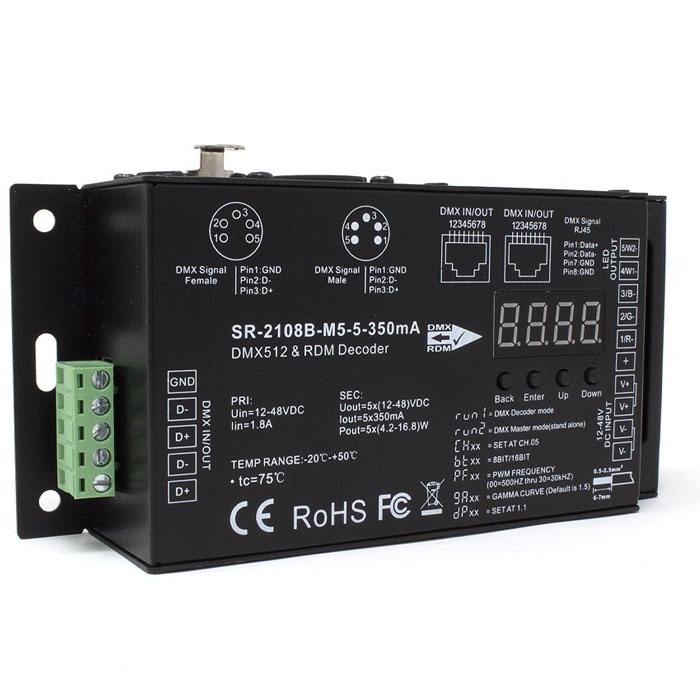

Sunricher DMX Ultra-Pro 5 Channel 350ma C/C DMX Decoder RDM & Master Mode
As part of our Sunricher range of professional lighting control products, this five channel 350mA Constant Current DMX512 decoder is an installation grade product suitable for use in TV Studios and commercial installations such as hotels, restaurants and retail outlets where multiple sets of LED products need to be connected to a DMX data source.
The RDM bi-direction communication function enables an RDM equipped DMX master console to detect and display decoder information. A variety of features such as DMX address setting, output channel quantity, PWM output resolution (8 or 16 bit), PWM output frequency, GAMMA dimming curve value and DMX decoding mode can also be set via the digital display and menu buttons. This decoder also features a DMX signal repeater function
Signal input and output ports for this controller including 5 pin XLR, RJ45 and a hard wired connection are available.
Please note that this unit also has master control features for basic operation without a DMX desk, connect to an appropriate constant current LED driver in order to control your LED lighting.
Technical Specification
Product Code: SR2108BM55350MA
Product Packed: Gift box
Product Type: Decoder
Colour: Black
IP Rating: IP20 Non-Waterproof
PWM Frequency: 500Hz - 30KHz Adjustable
Guarantee Period: 5 Years
Current: 5 x 350mA
Input Voltage: 12 - 48v DC
Connectivity: DMX 512 protocols
PCB Weight: Not Applicable
Size: 164 x 73 x 38mm
Dimmable: No
LED Type: Not Applicable
Average LED life Hrs: 30,000
Colour Temperature Variation: IP20 No
Power Factor >: Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Current
Adjustable Dimming Curve & Gamma Value: Yes
Adjustable Bit Rate: Yes
Adjustable PWM: Yes
Relative Humidity: 8% to 80%
RDM: Yes
Operating Temp: 0-40°C
