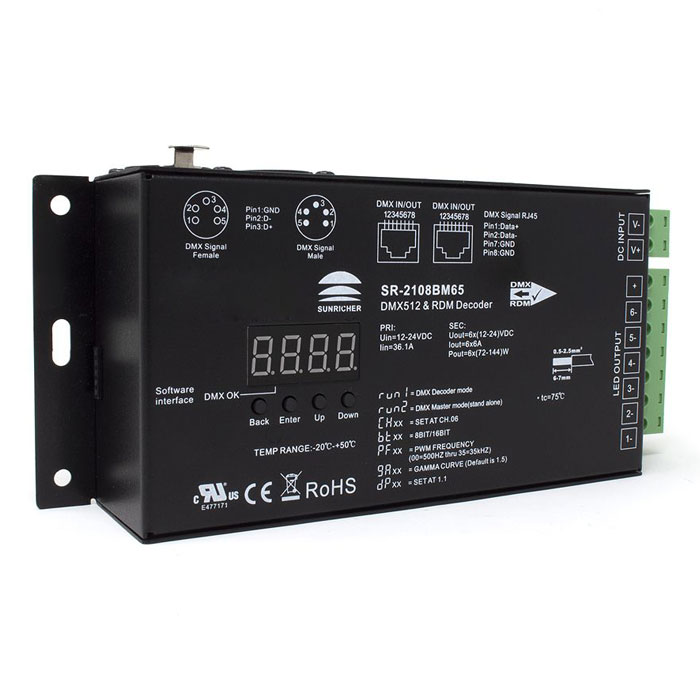

Sunricher DMX Ultra-Pro 6 Channel DMX Decoder with RDM Master Mode
As part of our Sunricher range of professional lighting control products, this six channel DMX512 decoder is an installation grade product suitable for use in TV Studios and commercial installations such as hotels, restaurants and retail outlets where multiple sets of LED products need to be connected to a DMX data source.
The RDM bi-direction communication function enables an RDM equipped DMX master console to detect and display decoder information. A variety of features such as DMX address setting, output channel quantity, PWM output resolution (8 or 16 bit), PWM output frequency, GAMMA dimming curve value and DMX decoding mode can also be set via the digital display and menu buttons. This decoder also features a DMX signal repeater function
Signal input and output ports for this controller including 5 pin XLR, RJ45 and a hard wired connection are available.
Please note that this unit also has master control features for basic operation without a DMX desk, connect to an appropriate LED driver in order to control your LED lighting.
Technical Specification
Product Code: SR2108BM65
Product Packed: Gift box
Product Type: DMX 512 Decoder
Colour: Black
IP Rating: IP20 Non-Waterproof
PWM Frequency: 500Hz to 30KHz Adjustable
Guarantee Period: 5 Years
Input Voltage: 12v / 24v / 36v DC
Output Voltage: 12v / 24v / 36v DC
Connectivity: DMX 512 protocols
Size: 187.7x85.3x41mm
Dimmable: No
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type: Constant Voltage
Adjustable Dimming Curve & Gamma Value: Yes
Adjustable Bit Rate: Yes
Adjustable PWM: Yes
Relative Humidity: 8% to 80%
RDM: Yes
Operating Temp: 0-40°C
