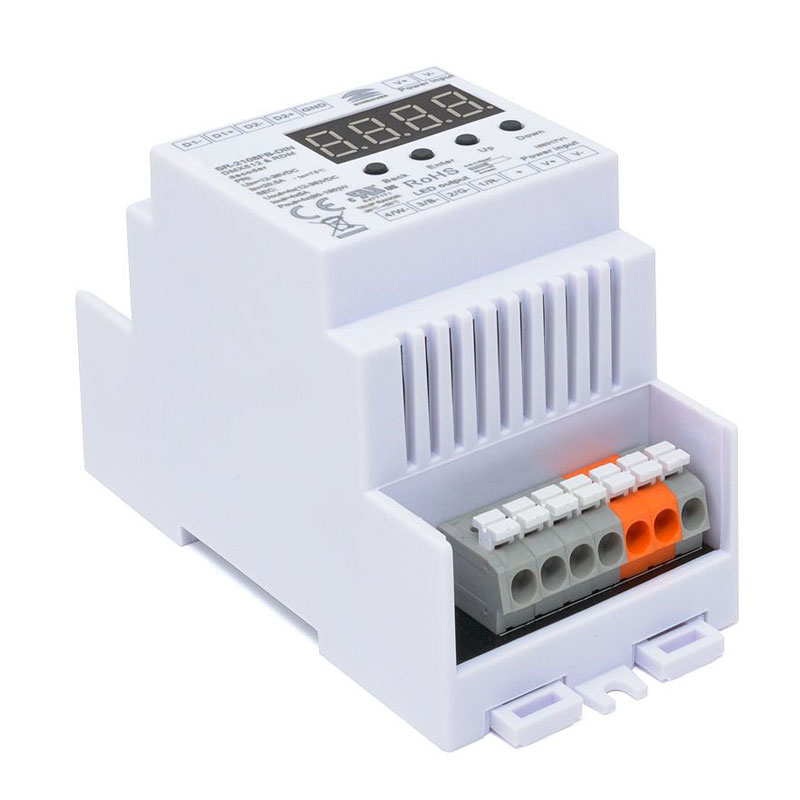

This professional four-channel constant voltage DMX512 decoder is a DIN rail mountable version of our SR2108FB4CH decoder and supports real 16-bit PWM resolution. The 4 DMX channels allow this decoder to communicate with single colour, adjustable white LEDs, RGB & RGBW LED Strip lights and other LED lighting units.
The DMX LED decoder is designed with both master and slave modes which enable you to have basic control of your LED lighting products without a DMX controller desk. This mode is helpful when testing your DMX LED-controlled LED tape installation.
The decoder features full support of the latest DMX512 protocols. The unit features four channels at 5A per channel constant voltage output. The decoder works with 12v, 24v & 36v DC LED products and it is fitted with easy wiring push grip terminals for ease of installation.
The RDM bi-direction communication function enables the DMX master console to detect and display decoder information and set DMX address etc.
While under decoder mode, a variety of professional features can be set using the digital display and user interface, features such as the DMX address, output channel quantity, PWM output resolution (8 bit or 16 bit), PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode.

Technical Specification
Product Code:    SR2108FBDIN
Product Packed:    Gift box
Manufacturer:    LED Technologies
Product Type:    DMX 512 Decoder
Colour:    White
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Wattage:    4 x 60w - 180w
Current:    4 x 5A
Input Voltage:    12v / 24v / 36v DC
Output Voltage:    12v / 24v / 36v DC
Connectivity:    DMX 512 protocols
PCB Weight:    Not Applicable
Size:    110 x 53 x 65mm
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Type:    Not Applicable
Average LED life Hrs:    30,000
Colour Temperature Variation:    IP20 No
Power Factor >:    Not Applicable
Continuous Operation:    Not suitable for 24/7 continuous use
Voltage Type:    Constant Voltage
Adjustable Dimming: Curve & Gamma Value    Yes
Adjustable Bit Rate:    Yes
Adjustable PWM:    Yes
Relative Humidity:    8% to 80%
RDM:    Yes
Operating Temp:    0-40°C
