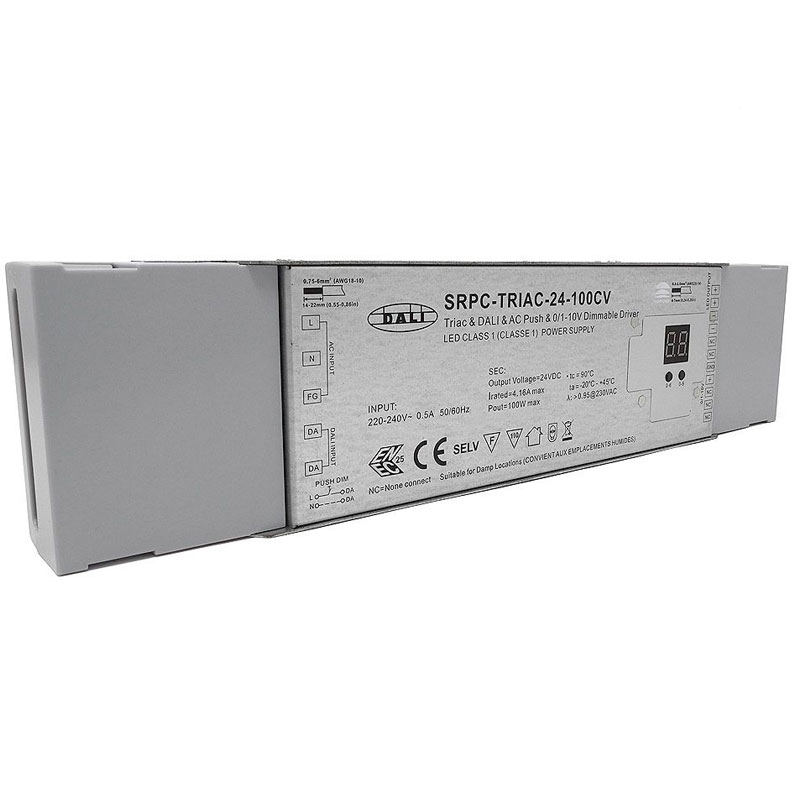

Sunricher Intelligent 4 in 1 Single Channel 24v 100w TRIAC Dimmable Driver
This 24V LED strip light driver is from the Sunricher range. It is suitable to power our Lifestyle or Proflex 24v products and LED tape lights.
24V LED lighting require a 24v LED power supply unit / LED driver / LED transformer. This will connect your lighting to a mains power supply. This TRIAC driver also enables you to dim and switch your lights effortlessly.
The TRIAC dimming driver has multiple input interfaces interfaces including DALI, Push, TRIAC and 0/1 - 10v control protocols.
The PWM digital dimming enables smooth dimming down to 1% with no flicker or noise.
The DALI address can be automatically assigned by the DALI master. The unit complies with IEC 62386-101, IEC 62386-102, IEC 62386-207 regulations.
The TRIAC LED dimmable driver is compatible with universal TRIAC dimmers. The interface is compatible with universal dimmers and suitable for places where an existing control system is installed.
A constant current LED driver is a power supply that regulates the voltage supply to a lighting product such as LED light strips.
To get the best performance out of your TRIAC LED drivers, only load the driver to around 75% of the drivers' value. For example, a 200W driver should only run at 150W. Therefore this 100W driver should only be used for 75W or lower lighting fixtures.
Lighting transformers use a constant voltage for powering LED's. The LED light drivers total wattage should be more than the required wattage of the product. Different types of LED drivers will have different output voltages. Make sure to select the correct constant voltage LED driver for the product you are powering.
Unlike some dimmers that have a much narrower load tolerance. Providing the load does not exceed the 5-100% parameters you won't have dimming dropouts or flickering at low dimming levels. TRIAC dimmable drivers tend to suffer from this problem.
This TRIAC dimmable LED strip driver is slim, measuring 155mm wide, 68.5mm in length and 40mm in height. It is an ideal solution for powering LED lighting products.
This LEDTech driver has an IP rating of IP67. The 6 stands for complete protection against dust. The 7 means that it is protected against temporary immersion.
Therefore, this driver is waterproof and is suitable for indoor and outdoor lighting.
Read our case study on IP rating and what they mean for more information.
It is perfect for powering lights in indoor installations such as in your home in living rooms, bedrooms or hallways. They are also perfect for commercial spaces such as hotels or restaurants. The small compact design enables the LED tape driver to be easily hidden.
It is also suitable for wet and damp environments where the driver way become wet. This includes swimming pools, kitchens and bathrooms. It can be installed outside as it can withstand weather such as rain or snow, perfect for powering garden LED lights.
The driver is supplied with input and output wire tails. These need to be connected to a suitably rated junction box such as our IP68 gel connectors. This will maintain the IP67 rating.
The driver features tabs that enable the driver to be drilled into place. This can be on a wall, roof or underneath furniture such as shelves so that it it concealed.
To install the driver, effortlessly connect the output to the LED product and then connect to a suitable mains supply.
Other Products
LED Technologies offer a wide range of LED Drivers suitable for a range of LED products including
12v Drivers
36V Drivers
Waterproof Drivers
300/350W Drivers
We also offer a huge selection of LED strip lights including
Single Colour
CCT adjustable
White
RGB colour changing
RGBW
Ultra Violet
Waterproof and non waterproof
Technical Specification
Product Code: SRPCTRIAC24100CV
Product Packed: Gift box
Manufacturer: LED Technologies
Product Type: Controller / Driver
Colour: Brushed Aluminium
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Wattage: 100w
Input Voltage: 240v AC
Output Voltage: 24v DC
Connectivity: Multiple
Size: 300 x 70 x 36mm
Dimmable: Yes
Power Factor >: 95
Voltage Type: Constant Voltage
Relative Humidity: 10% to 95% RH Non-Condensing
Operating Temp: -20 to +45
